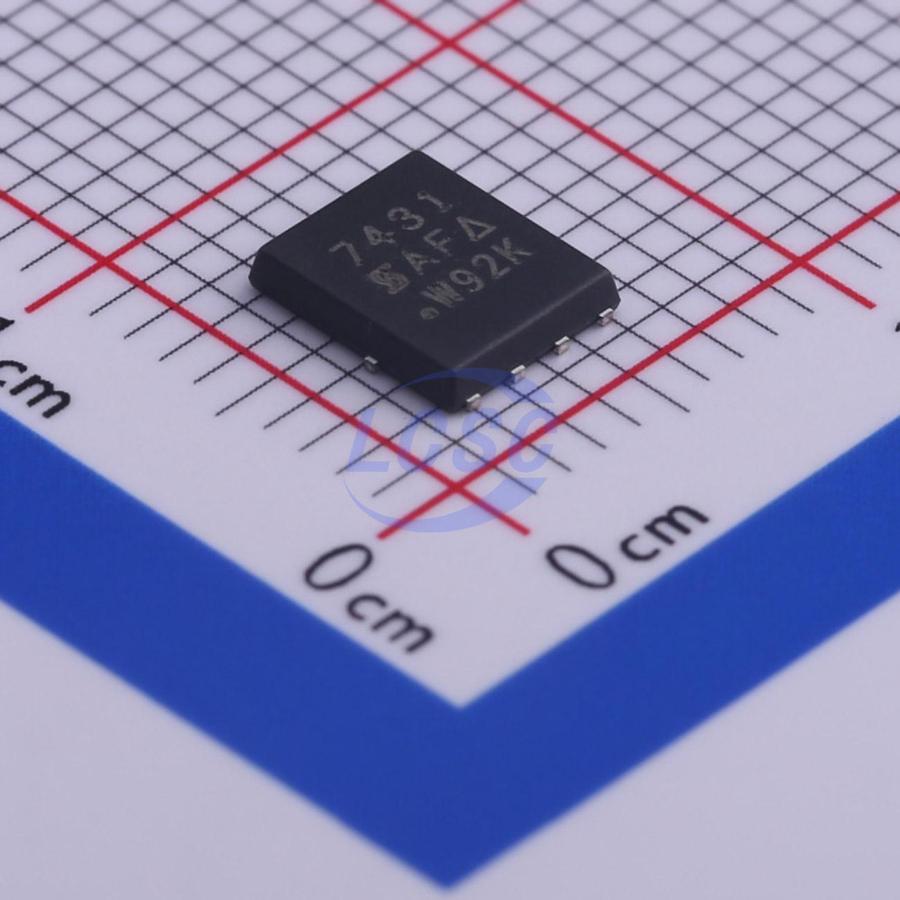

SI7431DP-T1-GE3
5.4W 200V 3.8A 174mΩ@10V 1 P-Channel P-Channel PDFN-8(5.9x5.2) Single FETs, MOSFETs RoHS
PDFN-8(5.9x5.2)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7431DP-T1-GE3
- Store part #
- C467909
- Package / case
- PDFN-8(5.9x5.2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C467909
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹395.59 | ₹395.59 |
| 10+ | ₹337.25 | ₹3,372.50 |
| 30+ | ₹302.41 | ₹9,072.30 |
| 100+ | ₹267.37 | ₹26,737.00 |
| 500+ | ₹251.25 | ₹1,25,625.00 |
| 1,000+ | ₹243.84 | ₹2,43,840.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Ciss-Input Capacitance
- 135pF
- Pd - Power Dissipation
- 5.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 3.8A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 174mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 88nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- Active clamp in intermediate DC/DC power supplies
Key features
- Halogen-free per IEC 61249-2-21
- TrenchFET power MOSFET
- Ultra-low on-resistance for critical application requirements
- Low thermal resistance PowerPAK package, 1.07 mm max height
- 100% Rg and avalanche tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7431DP-T1-E3#C3279541VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 8 | ₹1,099.84 · 8 in stock | View |
 | HSBA20P20A#C54842106HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 57 | ₹128.62 · 57 in stock | View |
 | SQJ431EP-T1_GE3#C3279499VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 1,587 | ₹220.49 · 1,587 in stock | View |
 | VBQA2202K#C7541180VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 28 | ₹140.63 · 28 in stock | View |
 | VBQA2208M#C7541171VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 26 | ₹129.73 · 26 in stock | View |
