VISHAYDatasheet (PDF)

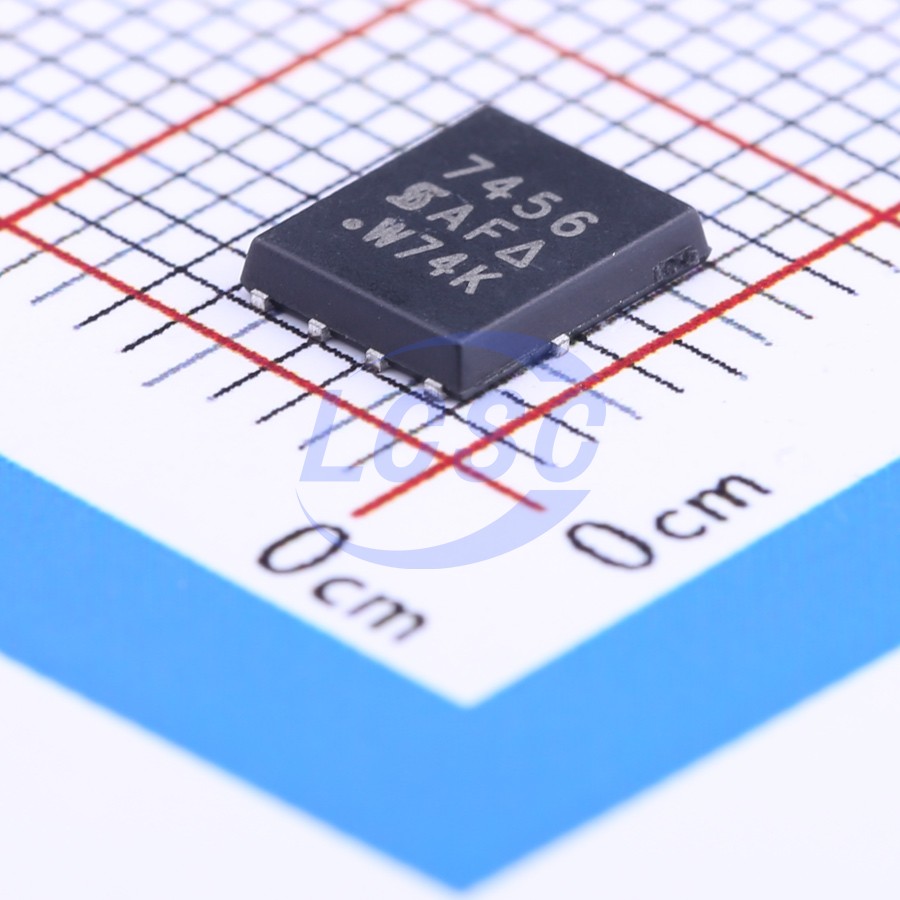

SI7456DP-T1-GE3
N-Channel 100V 9.3A 5.2W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantDiscontinued
MOSFET N-CH 100V 9.3A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7456DP-T1-GE3
- Store part #
- C141541
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,422 in stock
#C141541
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.23 | ₹243.23 |
| 10+ | ₹220.90 | ₹2,209.00 |
| 30+ | ₹206.96 | ₹6,208.80 |
| 100+ | ₹192.58 | ₹19,258.00 |
| 500+ | ₹186.13 | ₹93,065.00 |
| 1,000+ | ₹183.34 | ₹1,83,340.00 |
1 × ₹243.23
₹243.23
excl. GST
₹287.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7456DP-T1-GE3
₹243.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 9.3A
- Pd - Power Dissipation
- 5.2W
- RDS(on)
- 28mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
The PowerPAK package was developed around the SO-8 package. The PowerPAK SO-8 shares the same package dimensions and pin layout as the standard SO-8, enabling it to serve as a drop-in replacement. As a leadless package, the PowerPAK SO-8 utilizes the full SO-8 footprint by reclaiming the area normally occupied by leads, allowing it to accommodate a larger die than the standard SO-8. The exposed die attach pad on the bottom provides a direct, low-resistance thermal path to the substrate on which the device is mounted. Finally, the package profile is lower than that of the standard SO-8, making it ideal for space-constrained applications.
Applications
- Primary Side Switch for High Density DC/DC
- Telecom/Server 48 V, Full-/Half-Bridge DC/DC Industrial and 42 V Automotive
Key features
- Halogen-free According to IEC 61249-2-2 Available
- TrenchFET Power MOSFETs
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- PWM Optimized for Fast Switching
- 100% Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7456DP-T1-E3#C142528VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 6,925 | ₹165.00 · 6,925 in stock | View |
 | VBQA1102N#C481046VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 524 | ₹239.37 · 524 in stock | View |
 | SIR106ADP-T1-RE3#C3279521VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 166 | ₹294.01 · 166 in stock | View |
 | SIR846BDP-T1-RE3#C3289469VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 18 | ₹160.37 · 18 in stock | View |
 | FDMS86200#C128799onsemi · PDFN-8(4.9x5.8) | onsemi | PDFN-8(4.9x5.8) | 988 | ₹152.75 · 988 in stock | View |
