VBsemi ElecDatasheet (PDF)

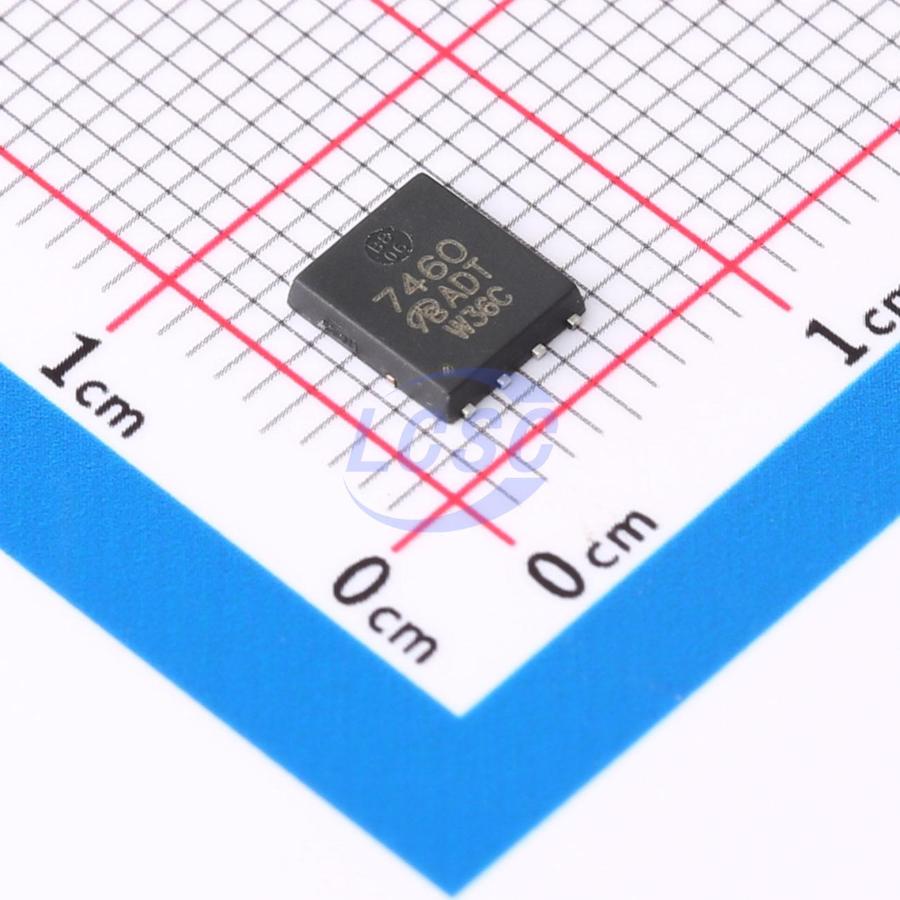

SI7460DP-T1-E3-VB
N-Channel 60V 50A 136W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 60V 50A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7460DP-T1-E3-VB
- Store part #
- C18794934
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C18794934
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.07 | ₹173.07 |
| 10+ | ₹145.42 | ₹1,454.20 |
| 30+ | ₹131.49 | ₹3,944.70 |
| 100+ | ₹117.77 | ₹11,777.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹173.07
₹173.07
excl. GST
₹204.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7460DP-T1-E3-VB
₹173.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Server and telecom power supplies - Switch Mode Power Supplies (SMPS) - Power Factor Correction (PFC) - Lighting - High Intensity Discharge (HID) lamps - Fluorescent lamp ballast lighting - Industrial applications
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- RoHS compliant
