VBsemi ElecDatasheet (PDF)

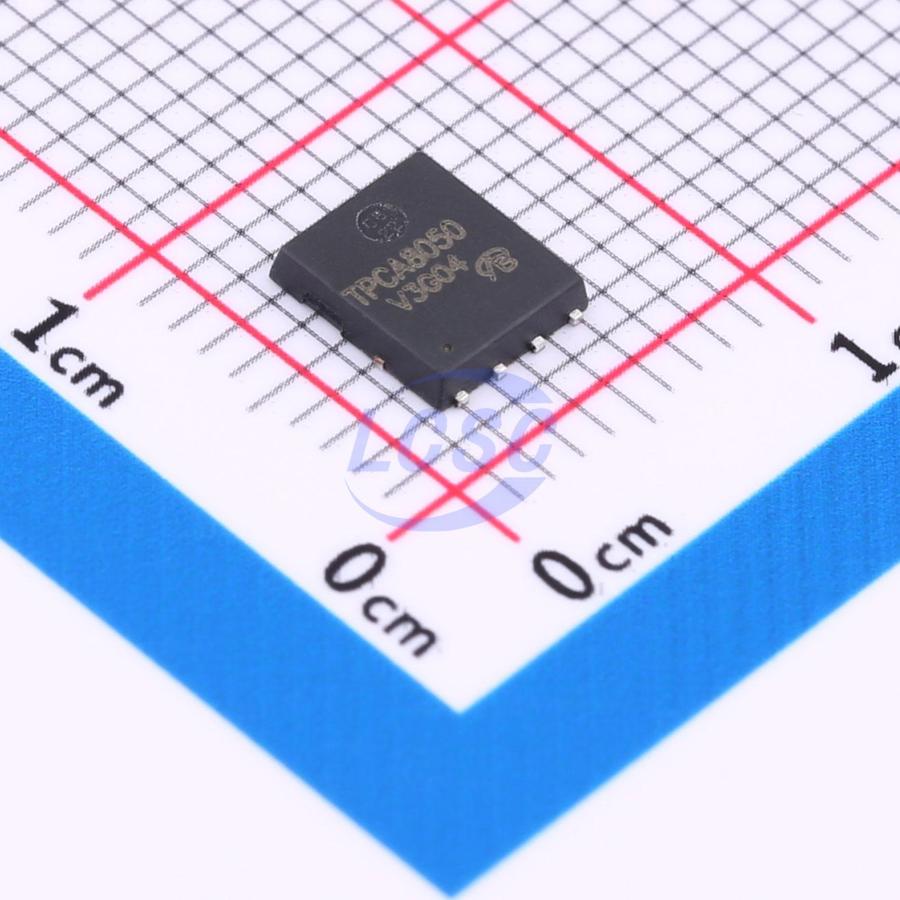

TPCA8050-H-VB
N-Channel 60V 50A 136W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 60V 50A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TPCA8050-H-VB
- Store part #
- C19711295
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C19711295
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.29 | ₹1,102.90 |
| 30+ | ₹97.06 | ₹2,911.80 |
| 100+ | ₹83.81 | ₹8,381.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.84 | ₹71,840.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPCA8050-H-VB
₹136.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7460DP-T1-E3-VB#C18794934VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 16 | ₹173.07 · 16 in stock | View |
 | BSC100N06LS3 G-VB#C20754990VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 31 | ₹157.40 · 31 in stock | View |
 | IRFH5406TRPBF-VB#C20755122VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹142.63 · 10 in stock | View |
 | TPCA8053-H-VB#C20755406VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹142.63 · 10 in stock | View |
 | IRFH5006TRPBF-VB#C5355691VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹249.33 · 5 in stock | View |
