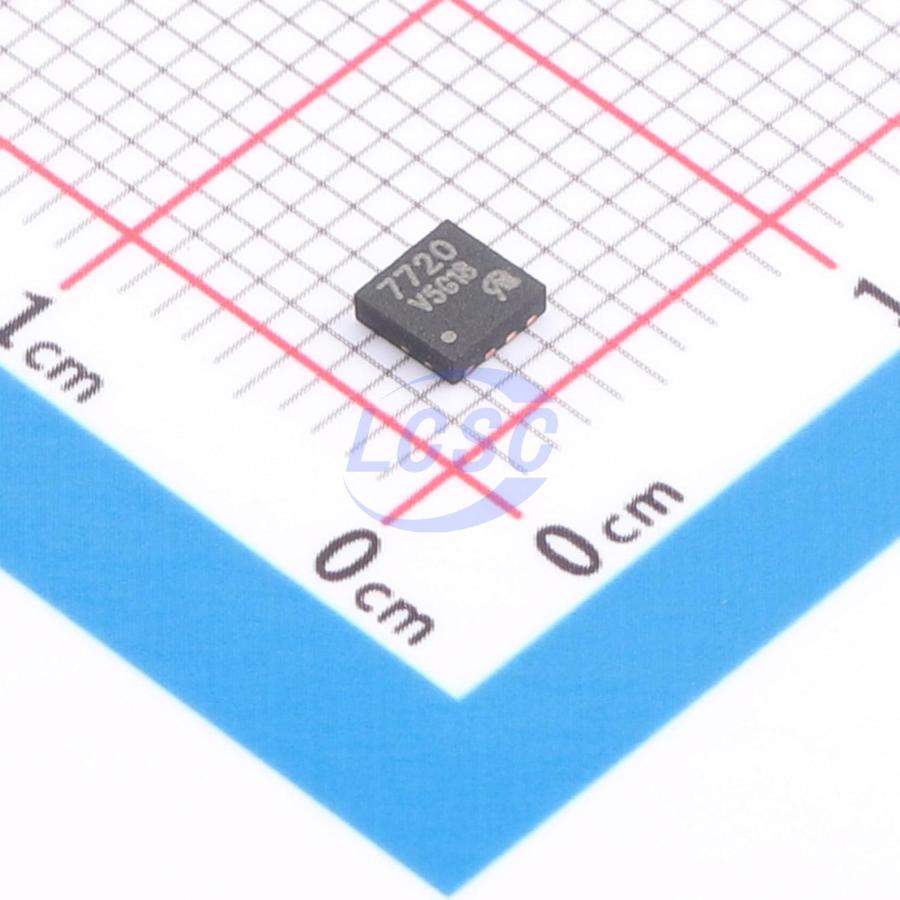

SI7720DN-T1-GE3-VB
30V 30A 60W 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
MOSFET N-CH 30V 30A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7720DN-T1-GE3-VB
- Store part #
- C50313873
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50313873
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.61 | ₹67.61 |
| 10+ | ₹54.04 | ₹540.40 |
| 30+ | ₹48.22 | ₹1,446.60 |
| 100+ | ₹40.91 | ₹4,091.00 |
| 500+ | ₹37.68 | ₹18,840.00 |
| 1,000+ | ₹35.75 | ₹35,750.00 |
1 × ₹67.61
₹67.61
excl. GST
₹79.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7720DN-T1-GE3-VB
₹67.61 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 236pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 13mΩ@10V;19mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- DC/DC Conversion - Low-Side Switch
- Notebook Computers
- Gaming Devices
Key features
- Halogen-free
- Trench power MOSFET
- 100% Rg and UIS tested
