VBsemi ElecDatasheet (PDF)

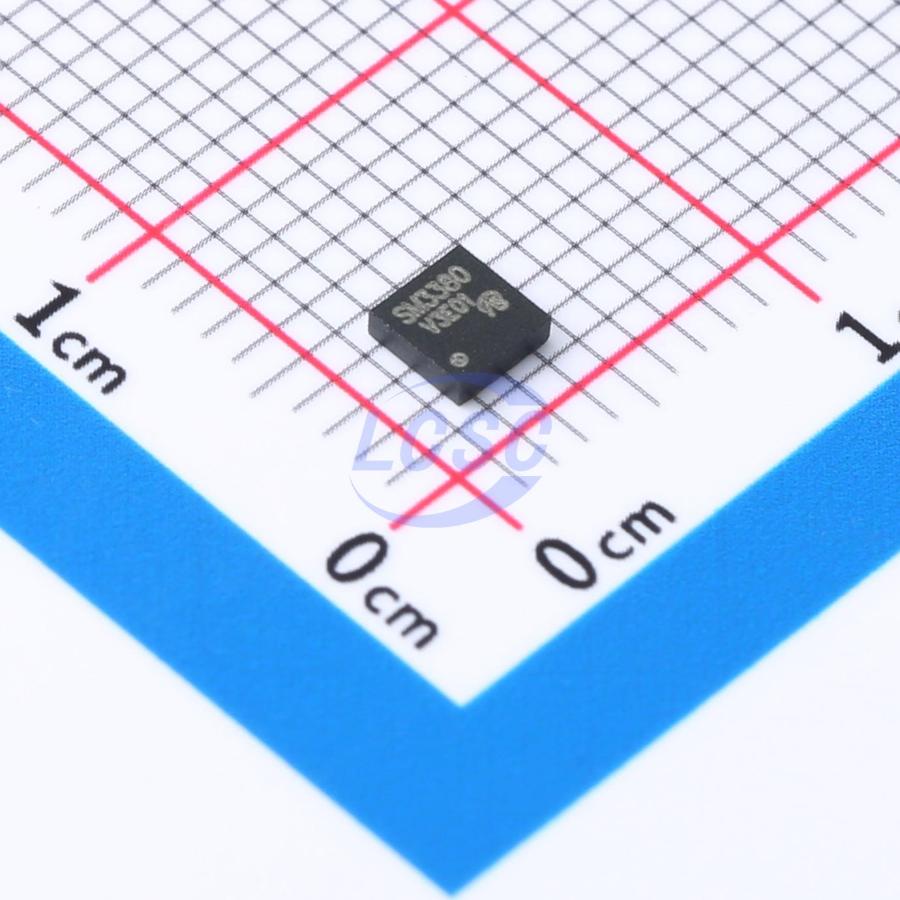

SM3380EHQG-VB
N-Channel 30V 30A 60W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 30V 30A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM3380EHQG-VB
- Store part #
- C19626760
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C19626760
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.08 | ₹600.80 |
| 30+ | ₹53.36 | ₹1,600.80 |
| 100+ | ₹44.96 | ₹4,496.00 |
| 500+ | ₹41.17 | ₹20,585.00 |
| 1,000+ | ₹39.08 | ₹39,080.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SM3380EHQG-VB
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 236pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 13mΩ@10V;19mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- DC-DC Conversion
- Low-Side Switching
- Notebook Computers
- Gaming Devices
Key features
- Halogen-free
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS412DN-VB#C19632157VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 84 | ₹91.05 · 84 in stock | View |
 | SM3326NHQA-VB#C20755101VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 20 | ₹86.00 · 20 in stock | View |
 | CSD16409Q3-VB#C50313871VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹66.96 · 10 in stock | View |
 | SI7720DN-T1-GE3-VB#C50313873VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹67.61 · 10 in stock | View |
 | RJK03E2DNS-VB#C50313875VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹67.61 · 10 in stock | View |
