VISHAYDatasheet (PDF)

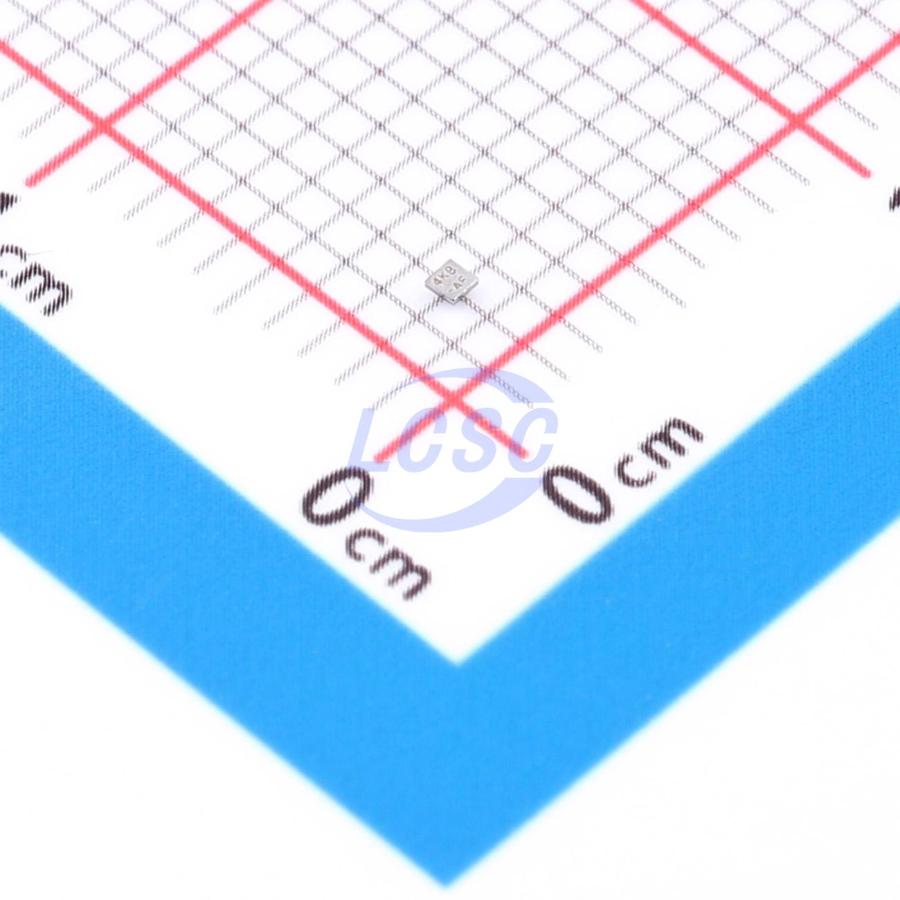

SI8817DB-T2-E1
900mW 20V 2.9A 320mΩ@1.5V 1 P-Channel P-Channel X-FBGA-4 Single FETs, MOSFETs RoHS
X-FBGA-4ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SI8817DB-T2-E1
- Store part #
- C144866
- Package / case
- X-FBGA-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,978 in stock
#C144866
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.36 | ₹56.36 |
| 10+ | ₹44.84 | ₹448.40 |
| 30+ | ₹39.82 | ₹1,194.60 |
| 100+ | ₹33.51 | ₹3,351.00 |
| 500+ | ₹30.91 | ₹15,455.00 |
| 1,000+ | ₹29.16 | ₹29,160.00 |
1 × ₹56.36
₹56.36
excl. GST
₹66.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI8817DB-T2-E1
₹56.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 615pF
- Pd - Power Dissipation
- 900mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.9A
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 320mΩ@1.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.5nC@8V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
Applications
- Load switches and charger switches
- Battery management
- DC/DC converters
- For smartphones and tablets
Key features
- TrenchFET power MOSFET
- Compact footprint, only 0.8 mm x 0.8 mm
- Maximum thickness as low as 0.4 mm
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI8487DB-T1-E1#C727392VISHAY · UFBGA-4 | VISHAY | UFBGA-4 | 4,758 | ₹44.74 · 4,758 in stock | View |
 | SI8489EDB-T2-E1#C467916VISHAY · UFBGA-4 | VISHAY | UFBGA-4 | On request | ₹56.52 · 0 in stock | View |
| SI8409DB-T1-E1#C727697VISHAY · XFBGA-4 | VISHAY | XFBGA-4 | On request | ₹167.81 · 0 in stock | View | |
| SI8401DB-T1-E1#C7011632VISHAY · XFBGA-4 | VISHAY | XFBGA-4 | On request | ₹153.98 · 0 in stock | View | |
| SI8413DB-T1-E1#C7363388VISHAY · XFBGA-4 | VISHAY | XFBGA-4 | On request | ₹27.65 · 0 in stock | View | |
