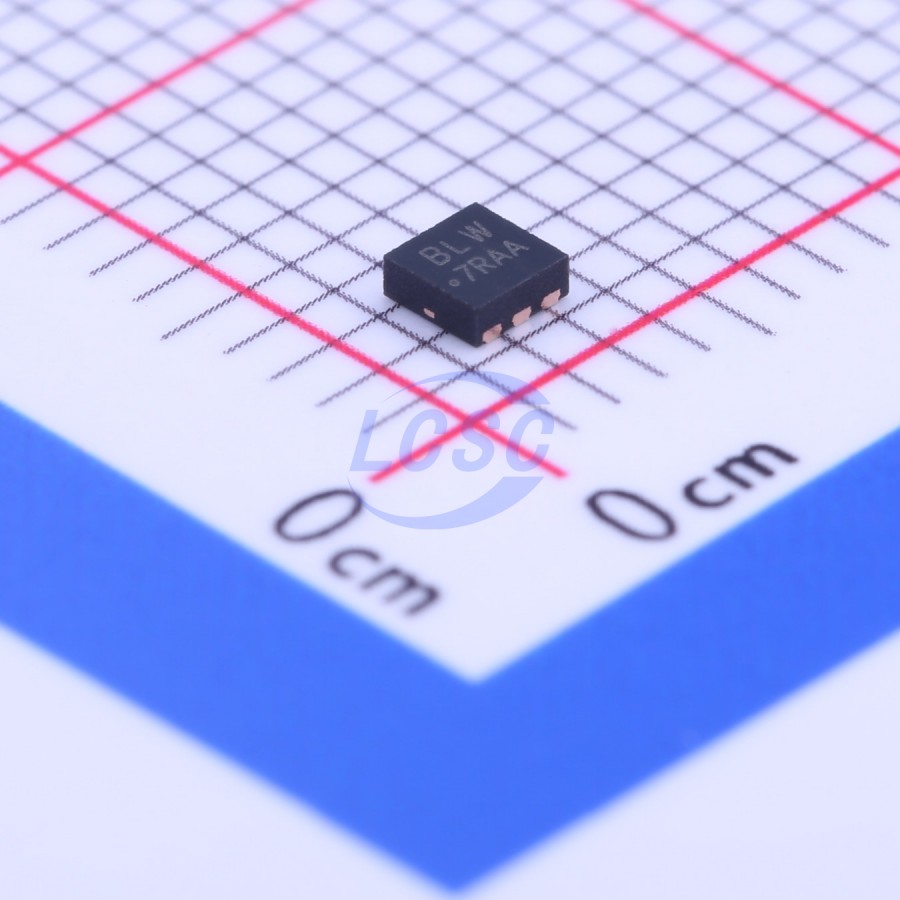

SIA433EDJ-T1-GE3
P-Channel 20V 12A 19W Surface Mount PowerPAK-SC-70-6
PowerPAK-SC-70-6ROHS3 CompliantActive
MOSFET P-CH 20V 12A PowerPAK-SC-70-6
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA433EDJ-T1-GE3
- Store part #
- C143764
- Package / case
- PowerPAK-SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C143764
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.54 | ₹84.54 |
| 10+ | ₹67.59 | ₹675.90 |
| 30+ | ₹59.11 | ₹1,773.30 |
| 100+ | ₹50.63 | ₹5,063.00 |
| 500+ | ₹45.64 | ₹22,820.00 |
| 1,000+ | ₹43.04 | ₹43,040.00 |
1 × ₹84.54
₹84.54
excl. GST
₹99.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA433EDJ-T1-GE3
₹84.54 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 12A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 65mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 75nC@8V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Applications
- Portable Devices
- Load Switch
- Battery Switch
- Charger Switch
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET
- New Thermally Enhanced PowerPAK SC-70 Package
- Small Footprint Area
- Low On-Resistance
- 100 % Rg Tested
- Built in ESD Protection with Zener Diode
- Typical ESD Performance: 1800 V
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIA445EDJ-T1-GE3#C144959VISHAY · PowerPAK-SC-70-6 | VISHAY | PowerPAK-SC-70-6 | 17 | ₹92.48 · 17 in stock | View |
 | SIA483DJ-T1-GE3#C145467VISHAY · PowerPAK-SC-70-6 | VISHAY | PowerPAK-SC-70-6 | 1,422 | ₹82.66 · 1,422 in stock | View |
 | SIA429DJT-T1-GE3#C141612VISHAY · PowerPAK-SC-70-6 | VISHAY | PowerPAK-SC-70-6 | On request | ₹137.14 · 0 in stock | View |
 | SIA421DJ-T1-GE3#C145291VISHAY · PowerPAK-SC-70-6 | VISHAY | PowerPAK-SC-70-6 | On request | ₹346.27 · 0 in stock | View |
