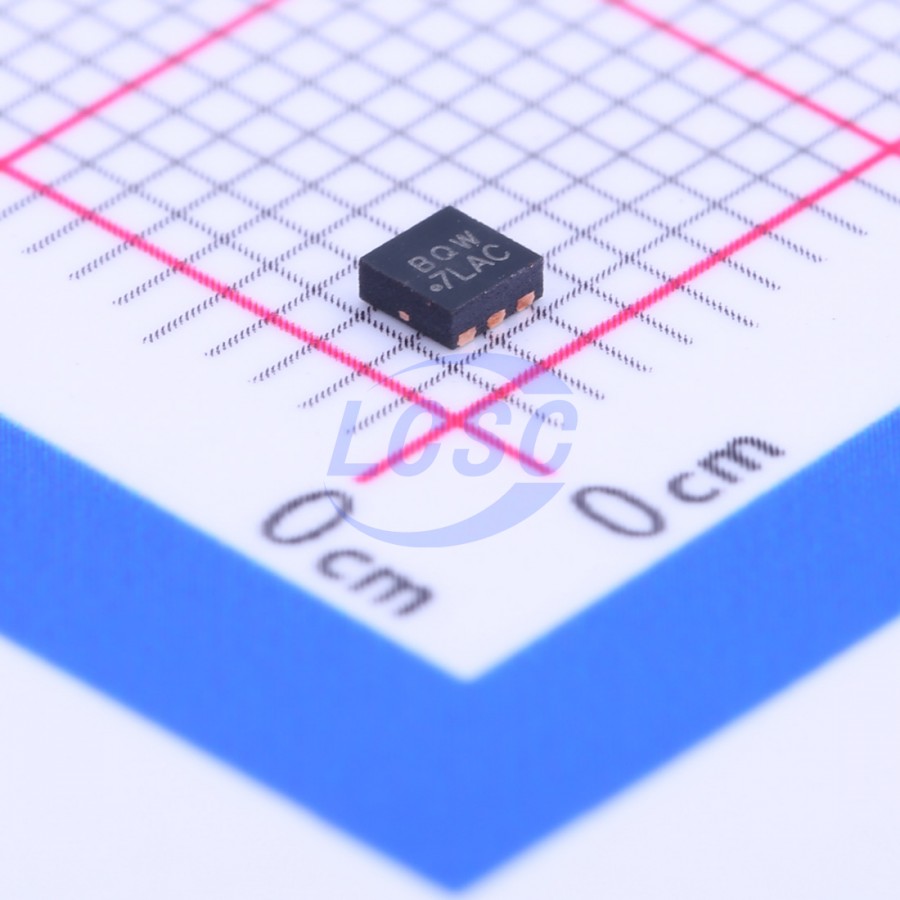

SIA445EDJ-T1-GE3
P-Channel 20V 12A 12W Surface Mount PowerPAK-SC-70-6
PowerPAK-SC-70-6ROHS3 CompliantActive
MOSFET P-CH 20V 12A PowerPAK-SC-70-6
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA445EDJ-T1-GE3
- Store part #
- C144959
- Package / case
- PowerPAK-SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C144959
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.48 | ₹92.48 |
| 10+ | ₹77.04 | ₹770.40 |
| 30+ | ₹69.21 | ₹2,076.30 |
| 100+ | ₹61.59 | ₹6,159.00 |
| 500+ | ₹56.80 | ₹28,400.00 |
| 1,000+ | ₹54.40 | ₹54,400.00 |
1 × ₹92.48
₹92.48
excl. GST
₹109.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA445EDJ-T1-GE3
₹92.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.13nF
- Pd - Power Dissipation
- 12W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 30mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.135 g
Overview
Applications
- Smart Phones, Tablet PCs, Mobile Computing
- Battery Switch
- Charger Switch
- Load Switch
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET Thermally Enhanced PowerPAK SC-70 Package - Small Footprint Area - Low On-Resistance 100 % Rg Tested
- Built in ESD Protection with Zener Diode
- Typical ESD Performance: 2000 V
- Compliant to RoHS Directive 2002/95/EC
