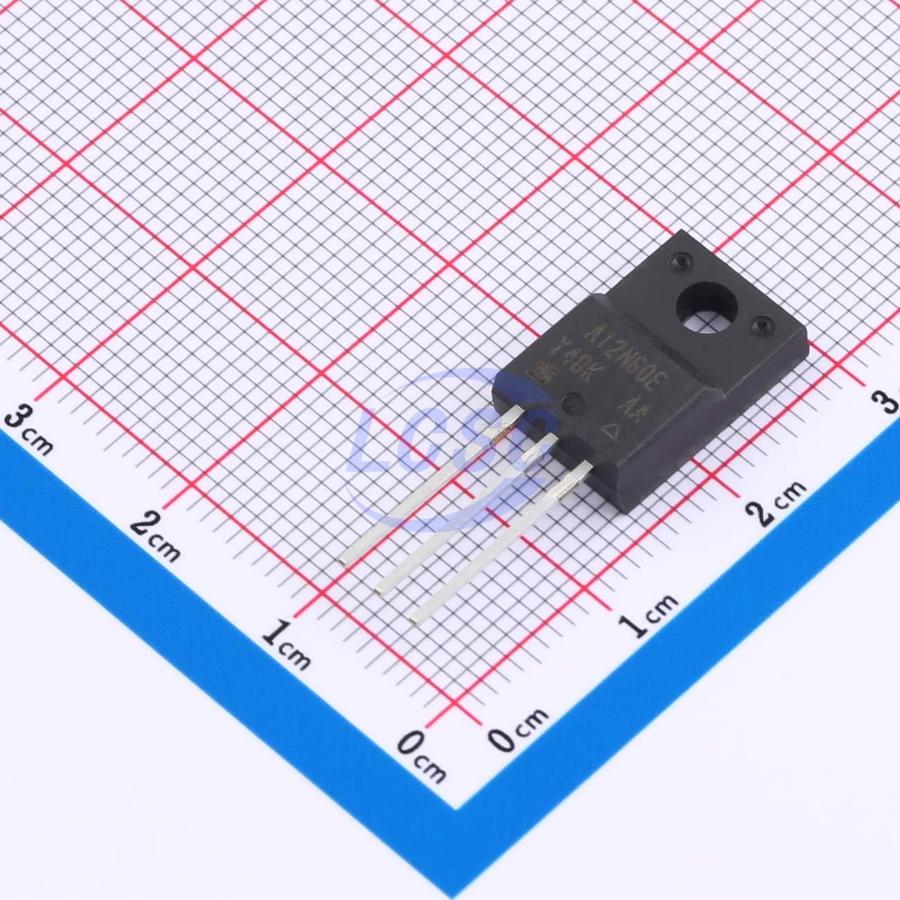

SIHA12N60E-E3
N-Channel 600V 12A 33W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 600V 12A TO-220
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHA12N60E-E3
- Store part #
- C6816589
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C6816589
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹213.39 | ₹213.39 |
| 10+ | ₹208.40 | ₹2,084.00 |
| 50+ | ₹205.13 | ₹10,256.50 |
| 100+ | ₹201.88 | ₹20,188.00 |
1 × ₹213.39
₹213.39
excl. GST
₹251.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SIHA12N60E-E3
₹213.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 53pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 937pF
- Pd - Power Dissipation
- 33W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 380mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.54 g
Overview
This power MOSFET is manufactured using advanced trench technology. The device features excellent gate charge and on-resistance RDS(on), effectively reducing switching and conduction losses. As a result, it is well suited for AC/DC power conversion, load switching, and industrial power applications.
Applications
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Consumer - Adaptors - Televisions - Game console
- Computing - Adaptors - ATX power supply
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
- RoHS COMPLIANT HALOGEN FREE Available
