VISHAYDatasheet (PDF)

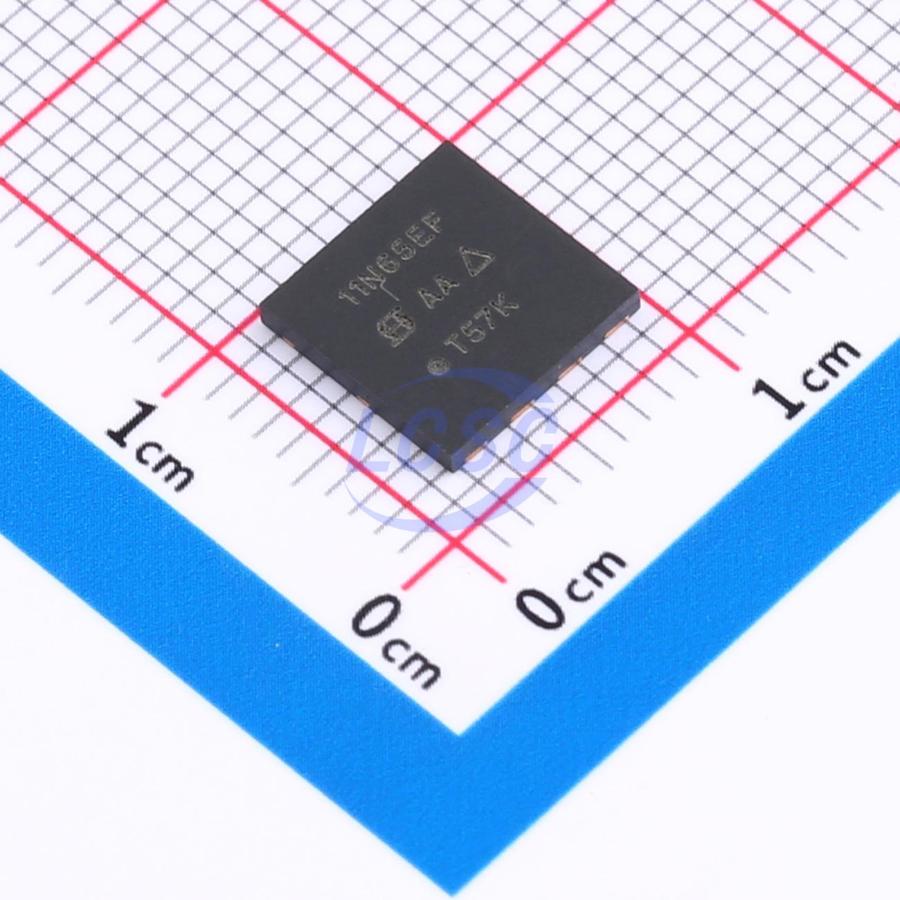

SIHH11N65EF-T1-GE3
N-Channel 650V 11A 130W PowerPAK-5(8x8)
PowerPAK-5(8x8)ROHS3 CompliantActive
MOSFET N-CH 650V 11A PowerPAK-5(8x8)
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHH11N65EF-T1-GE3
- Store part #
- C3279483
- Package / case
- PowerPAK-5(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3279483
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹540.42 | ₹540.42 |
| 10+ | ₹527.82 | ₹5,278.20 |
| 30+ | ₹519.34 | ₹15,580.20 |
| 100+ | ₹510.88 | ₹51,088.00 |
1 × ₹540.42
₹540.42
excl. GST
₹637.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIHH11N65EF-T1-GE3
₹540.42 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 62pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.243nF
- Pd - Power Dissipation
- 130W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 332mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Completely lead (Pb) -free device
- Low figure-of-merit (FOM) R(on)×Q(g)
- Low input capacitance (C(iss))
- RoHS COMPLIANT
- HALOGEN FREE
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
- GREEN (5-2008)
- Kelvin connection for reduced gate noise
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK099V65Z,LQ#C7068982TOSHIBA · DFN-5(8x8) | TOSHIBA | DFN-5(8x8) | 5 | ₹1,355.40 · 5 in stock | View |
 | STL45N65M5#C501011ST · PowerFLAT-HV(8x8) | ST | PowerFLAT-HV(8x8) | 30 | ₹998.71 · 30 in stock | View |
| MMUB65R115RURH#C51891822MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 298 | ₹174.11 · 298 in stock | View | |
 | MMUB65R090RURH#C51891811MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 179 | ₹176.37 · 179 in stock | View |
 | STL57N65M5#C501013ST · PowerFLAT(8x8) | ST | PowerFLAT(8x8) | 5 | ₹1,713.52 · 5 in stock | View |
