VBsemi ElecDatasheet (PDF)

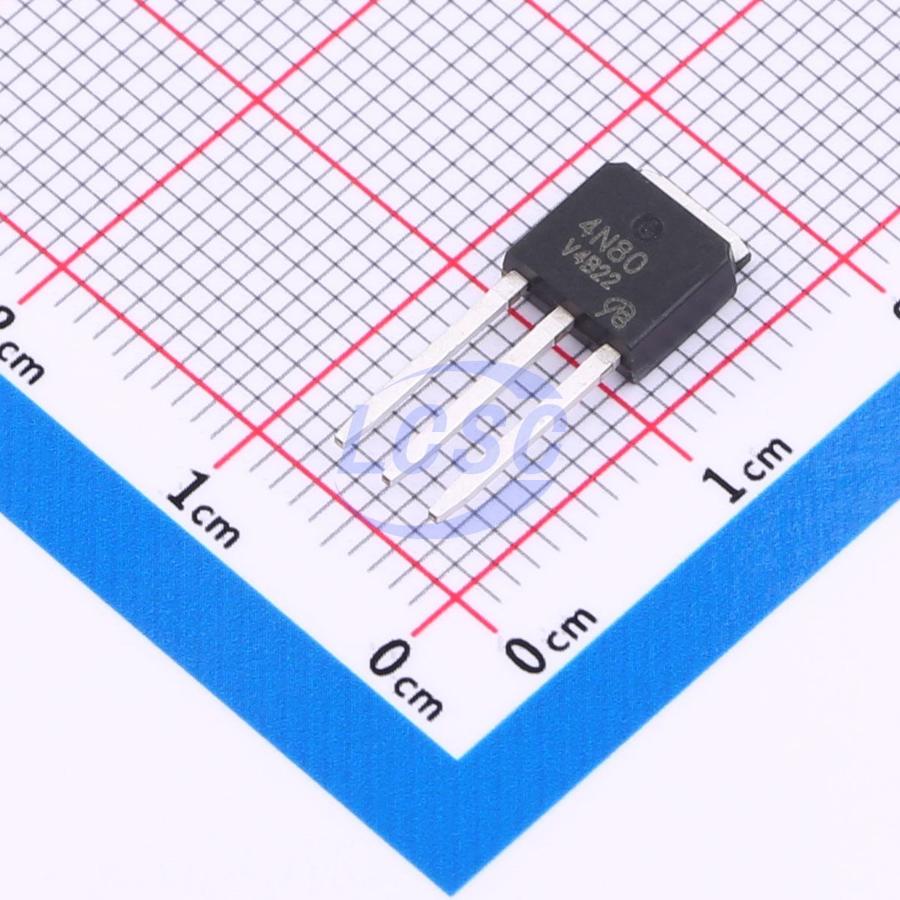

SiHU4N80E-VB
N-Channel 800V 5A 190W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 800V 5A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SiHU4N80E-VB
- Store part #
- C22357337
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357337
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.10 | ₹148.10 |
| 10+ | ₹122.47 | ₹1,224.70 |
| 30+ | ₹108.39 | ₹3,251.70 |
| 80+ | ₹92.64 | ₹7,411.20 |
| 480+ | ₹85.49 | ₹41,035.20 |
| 960+ | ₹82.34 | ₹79,046.40 |
1 × ₹148.10
₹148.10
excl. GST
₹174.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
SiHU4N80E-VB
₹148.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 81pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 2.3nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 1.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 122nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
