VBsemi ElecDatasheet (PDF)

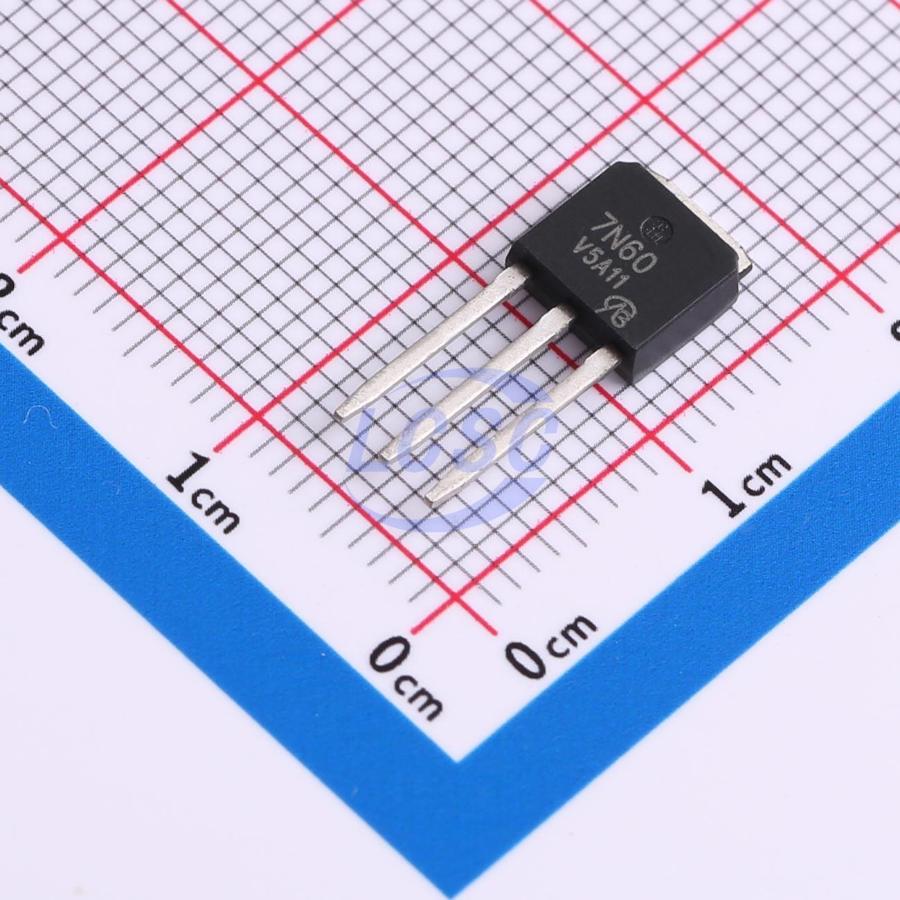

SIHU7N60E-GE3-VB
N-Channel 650V 7A 83W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 650V 7A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIHU7N60E-GE3-VB
- Store part #
- C41370437
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C41370437
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.12 | ₹203.12 |
| 10+ | ₹177.64 | ₹1,776.40 |
| 30+ | ₹163.71 | ₹4,911.30 |
| 80+ | ₹98.84 | ₹7,907.20 |
| 480+ | ₹91.66 | ₹43,996.80 |
| 960+ | ₹88.60 | ₹85,056.00 |
1 × ₹203.12
₹203.12
excl. GST
₹239.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
SIHU7N60E-GE3-VB
₹203.12 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 700mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK6Q60W-VB#C19711364VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹148.31 · 20 in stock | View |
 | D9N40-VB#C29778955VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 15 | ₹142.00 · 15 in stock | View |
 | AOI7S65-VB#C22357253VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 5 | ₹142.00 · 5 in stock | View |
 | AOI600A70-VB#C22357289VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 5 | ₹154.82 · 5 in stock | View |
 | VBFB17R08S#C22357290VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 5 | ₹154.82 · 5 in stock | View |
