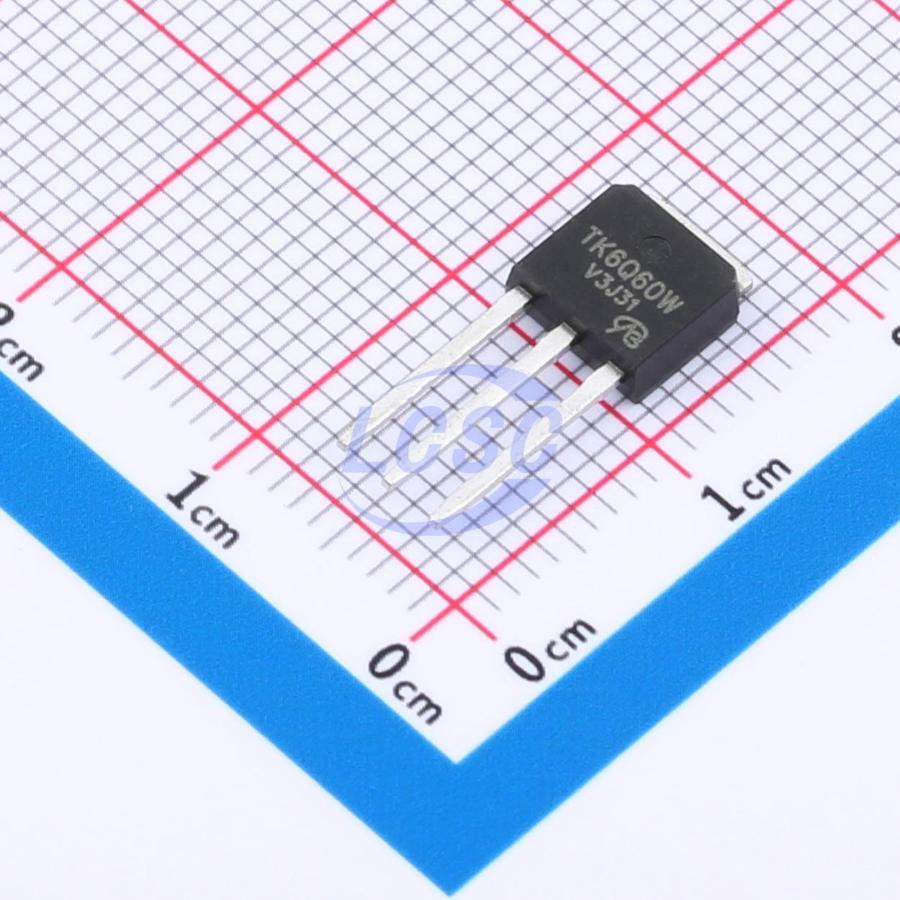

TK6Q60W-VB
N-Channel 650V 7A 83W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 650V 7A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TK6Q60W-VB
- Store part #
- C19711364
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19711364
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.31 | ₹148.31 |
| 10+ | ₹123.73 | ₹1,237.30 |
| 30+ | ₹110.29 | ₹3,308.70 |
| 80+ | ₹94.95 | ₹7,596.00 |
| 480+ | ₹88.23 | ₹42,350.40 |
| 960+ | ₹85.08 | ₹81,676.80 |
1 × ₹148.31
₹148.31
excl. GST
₹175.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
TK6Q60W-VB
₹148.31 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 700mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
