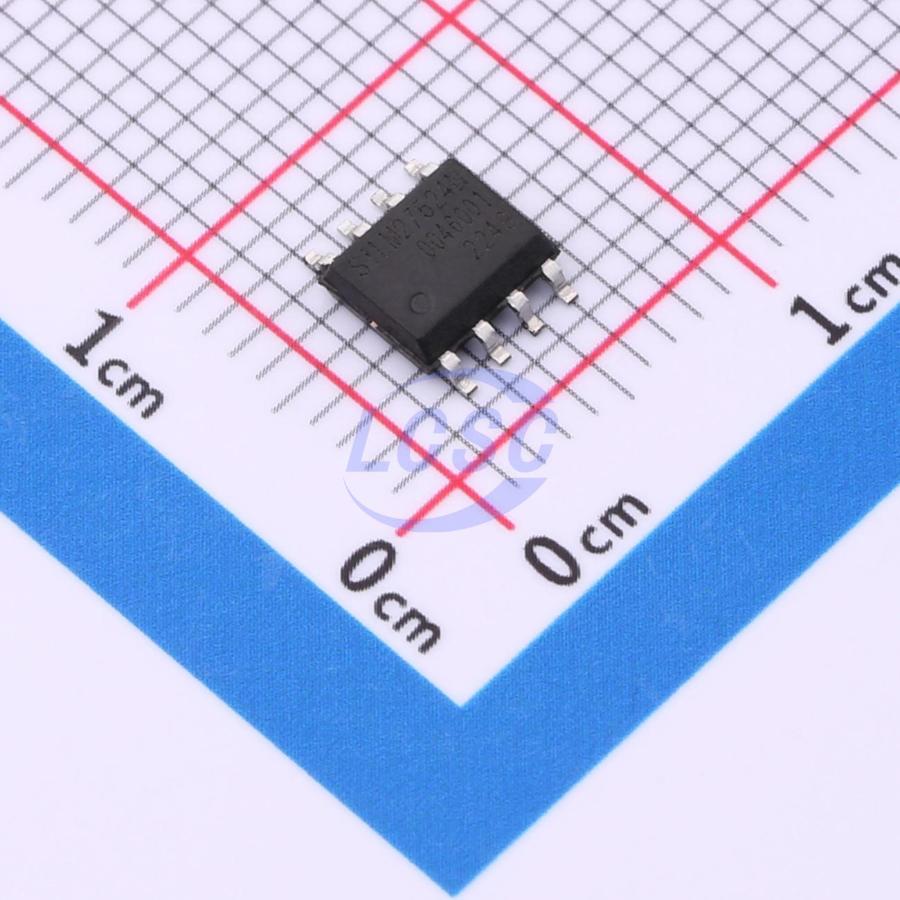

SiLM27524NCA-DG

The SiLM27524N family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SiLM27524N can source and sink high peak current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns. The SiLM27524N provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.

Applications

• Switching mode power supplies
• DC-to-DC converters
• Motor Control, solar power
• Gate driver for emerging wide band-gap power devices such as GaN

Key features

• Two independent gate drive channels
• 4.5 A peak source and 5.5 A peak sink current drive capability
• Fast propagation delay (18 ns typical)
• Fast rise and fall time (7 ns and 6 ns typical)
• 4.5 to 20V single supply range
• Under-voltage lockout
• TTL and CMOS compatible input logic threshold
• Ability to handle negative voltages (-5V) at inputs
• 2 ns typical delay matching between 2 channels
• Two outputs are paralleled for higher drive current
• Outputs held in low when inputs floating
• Operating temperature range of -40°C to 140°C
• SOP8 package
