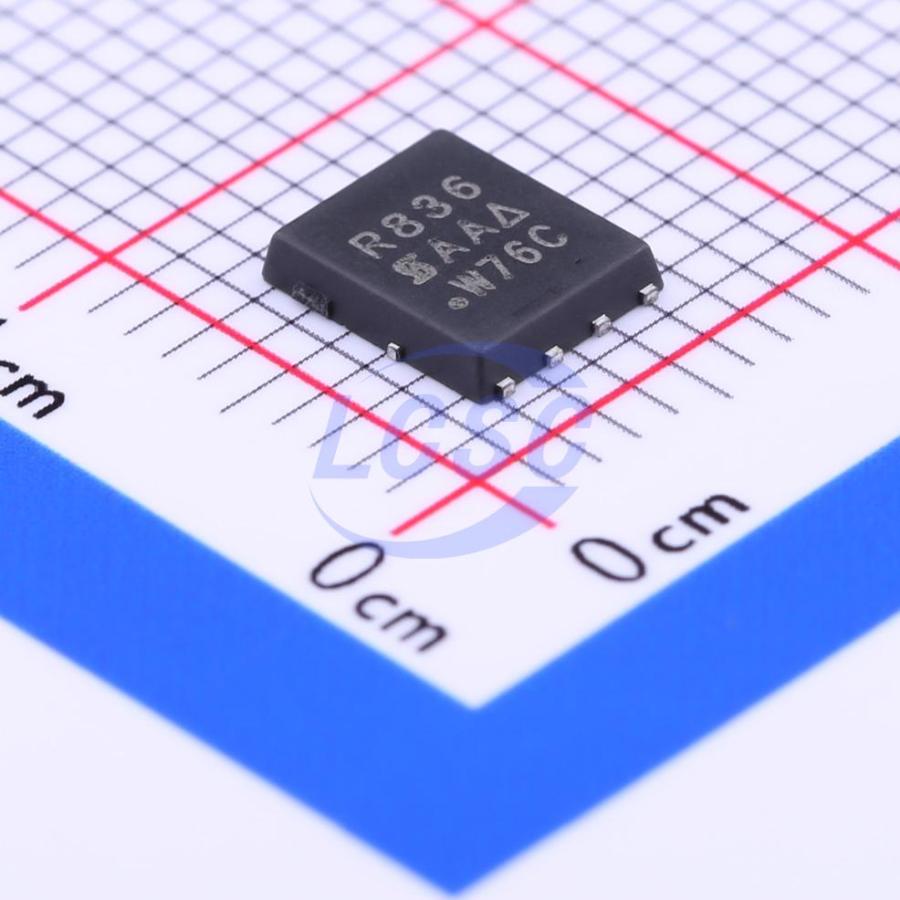

SIR836DP-T1-GE3
N-Channel 40V 21A 15.6W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 40V 21A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR836DP-T1-GE3
- Store part #
- C241858
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C241858
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.22 | ₹108.22 |
| 10+ | ₹91.92 | ₹919.20 |
| 30+ | ₹83.67 | ₹2,510.10 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹65.63 | ₹32,815.00 |
| 1,000+ | ₹63.24 | ₹63,240.00 |
1 × ₹108.22
₹108.22
excl. GST
₹127.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR836DP-T1-GE3
₹108.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 100pF
- Current - Continuous Drain(Id)
- 21A
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 15.6W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.241 g
Overview
Applications
- POL Synchronous Rectification
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7884BDP-T1-GE3-JSM#C7421711JSMSEMI · DFN5060-8L | JSMSEMI | DFN5060-8L | 4,384 | ₹59.77 · 4,384 in stock | View |
 | TSM170N06PQ56#C19856070Taiwan Semiconductor · PDFN-8(5x6) | Taiwan Semiconductor | PDFN-8(5x6) | 24 | ₹883.27 · 24 in stock | View |
 | TSM160N10LCR RLG#C3288725Taiwan Semiconductor · PDFN-8(5x6) | Taiwan Semiconductor | PDFN-8(5x6) | 25 | ₹1,516.61 · 25 in stock | View |
 | SI7850DP-T1-GE3-HXY#C22366851HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 57 | ₹125.59 · 57 in stock | View |
 | HXY30N06NF#C3033450HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 20 | ₹21.80 · 20 in stock | View |
