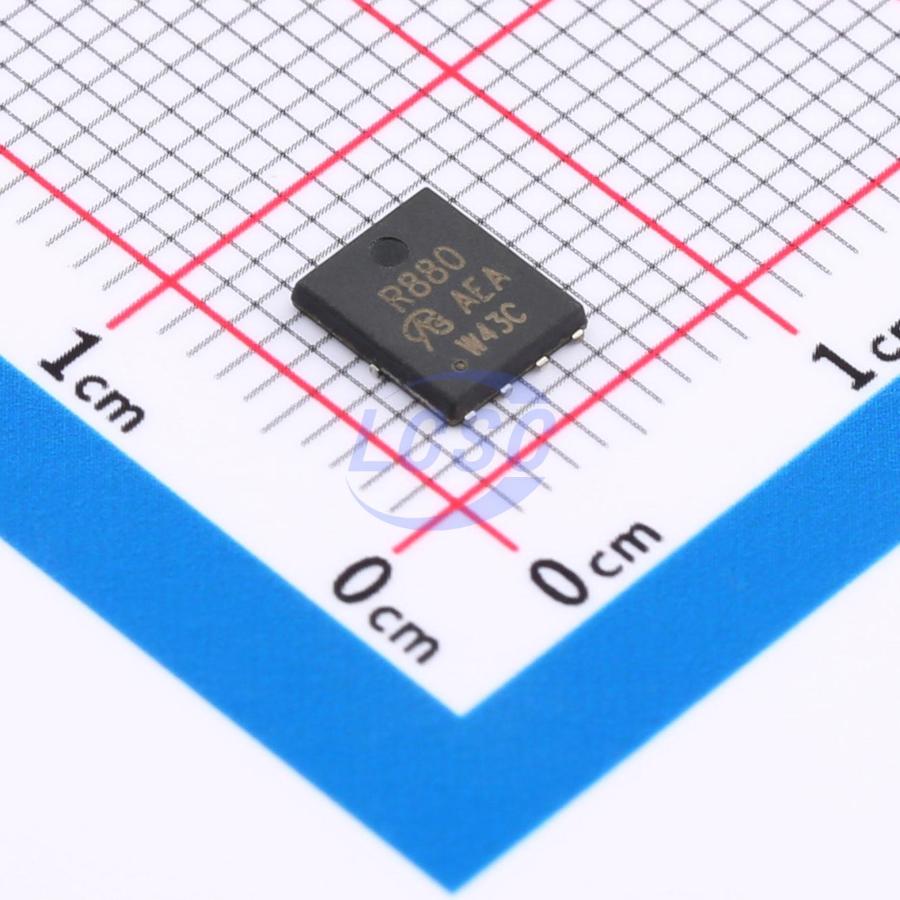

SIR880DP-VB
N-Channel 80V 60A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 80V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIR880DP-VB
- Store part #
- C20755716
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C20755716
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.07 | ₹264.07 |
| 10+ | ₹227.28 | ₹2,272.80 |
| 30+ | ₹207.04 | ₹6,211.20 |
| 100+ | ₹183.96 | ₹18,396.00 |
| 500+ | ₹132.80 | ₹66,400.00 |
| 1,000+ | ₹128.23 | ₹1,28,230.00 |
1 × ₹264.07
₹264.07
excl. GST
₹311.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIR880DP-VB
₹264.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 93pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
Applications
- Primary-side switch
- Synchronous rectification
- DC/AC inverter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
