VBsemi ElecDatasheet (PDF)

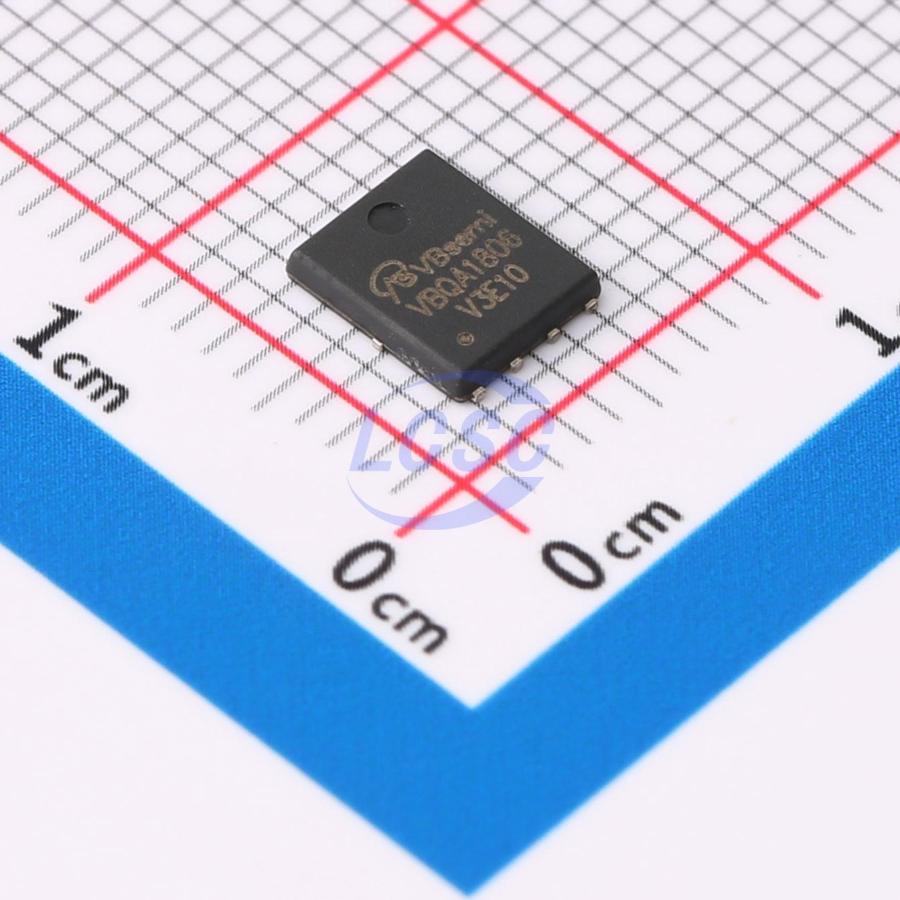

VBQA1806
N-Channel 80V 60A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 80V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQA1806
- Store part #
- C7429160
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7429160
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.71 | ₹223.71 |
| 10+ | ₹188.21 | ₹1,882.10 |
| 30+ | ₹168.68 | ₹5,060.40 |
| 100+ | ₹146.63 | ₹14,663.00 |
| 500+ | ₹124.77 | ₹62,385.00 |
| 1,000+ | ₹120.37 | ₹1,20,370.00 |
1 × ₹223.71
₹223.71
excl. GST
₹263.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
VBQA1806
₹223.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 93pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Applications
- Primary-side switch
- Synchronous rectification
- DC/AC inverter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIR880DP-VB#C20755716VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 52 | ₹264.07 · 52 in stock | View |
 | FDMS039N08B-VB#C7463901VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 81 | ₹277.38 · 81 in stock | View |
 | SI7852ADP-VB#C18212562VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 19 | ₹268.81 · 19 in stock | View |
 | AP94T07GMT-HF-VB#C19711312VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 18 | ₹214.89 · 18 in stock | View |
 | 057N08NS3-VB#C20755184VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹205.86 · 20 in stock | View |
