VISHAYDatasheet (PDF)

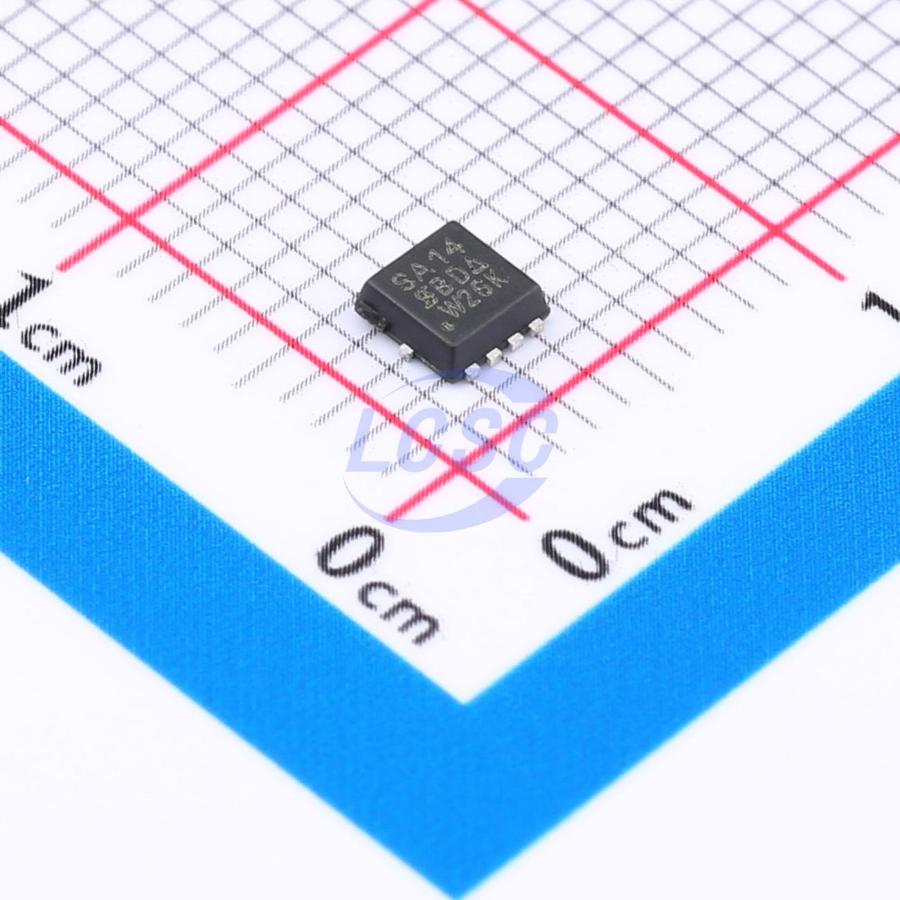

SISA14DN-T1-GE3
N-Channel 30V 20A 3.57W 26.5W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 20A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SISA14DN-T1-GE3
- Store part #
- C727488
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,982 in stock
#C727488
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.37 | ₹55.37 |
| 10+ | ₹43.42 | ₹434.20 |
| 30+ | ₹38.43 | ₹1,152.90 |
| 100+ | ₹32.14 | ₹3,214.00 |
| 500+ | ₹29.32 | ₹14,660.00 |
| 1,000+ | ₹27.57 | ₹27,570.00 |
1 × ₹55.37
₹55.37
excl. GST
₹65.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISA14DN-T1-GE3
₹55.37 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 445pF
- Ciss-Input Capacitance
- 1.45nF
- Pd - Power Dissipation
- 3.57W;26.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 5.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- -16V;20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- DC/DC conversion
- Synchronous rectification
- Synchronous buck converter
- DC/AC inverter
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TW20N03CC#C42417381TWGMC · PDFN3x3-8 | TWGMC | PDFN3x3-8 | 3,605 | ₹10.86 · 3,605 in stock | View |
 | HSBB3054#C701034HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 475 | ₹29.37 · 475 in stock | View |
 | ASDM30N65E-R#C2758222ASDsemi · DFN3.3x3.3-8 | ASDsemi | DFN3.3x3.3-8 | 1,495 | ₹23.06 · 1,495 in stock | View |
 | NTTFS5D6N08XLTAG#C50759353onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 35 | ₹208.80 · 35 in stock | View |
 | CMSC044N03#C45385347Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 125 | ₹28.15 · 125 in stock | View |
