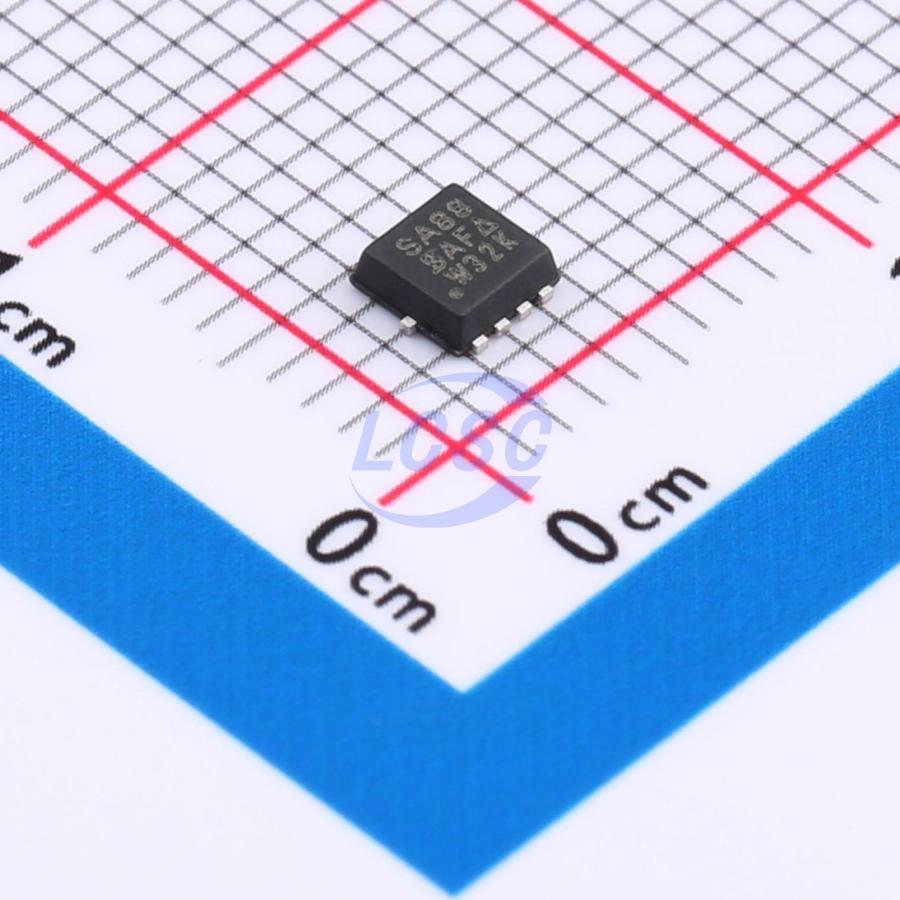

SISA88DN-T1-GE3
N-Channel 30V 40.5A Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 40.5A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SISA88DN-T1-GE3
- Store part #
- C727370
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
601 in stock
#C727370
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.57 | ₹84.57 |
| 10+ | ₹68.31 | ₹683.10 |
| 30+ | ₹60.28 | ₹1,808.40 |
| 100+ | ₹52.26 | ₹5,226.00 |
| 500+ | ₹47.48 | ₹23,740.00 |
| 1,000+ | ₹45.10 | ₹45,100.00 |
1 × ₹84.57
₹84.57
excl. GST
₹99.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISA88DN-T1-GE3
₹84.57 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 305pF
- Ciss-Input Capacitance
- 985pF
- Pd - Power Dissipation
- 19.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 40.5A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.3nC@15V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Applications
- DC/DC conversion
- Battery protection
- Load switching
- DC/AC inverters
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SISA18ADN-T1-GE3#C144938VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2,110 | ₹37.88 · 2,110 in stock | View |
 | AGM304AP#C7466526AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 190 | ₹23.19 · 190 in stock | View |
 | FH3050GS6#C5453918XIN FEI HONG · PDFN3.3x3.3-8L | XIN FEI HONG | PDFN3.3x3.3-8L | 4,460 | ₹21.62 · 4,460 in stock | View |
 | NTTFS5C466NLTAG#C900355onsemi · WDFN-8-EP(3.3x3.3) | onsemi | WDFN-8-EP(3.3x3.3) | 9 | ₹78.02 · 9 in stock | View |
 | SISA14BDN-T1-GE3#C3289414VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2,267 | ₹63.05 · 2,267 in stock | View |
