Suntek

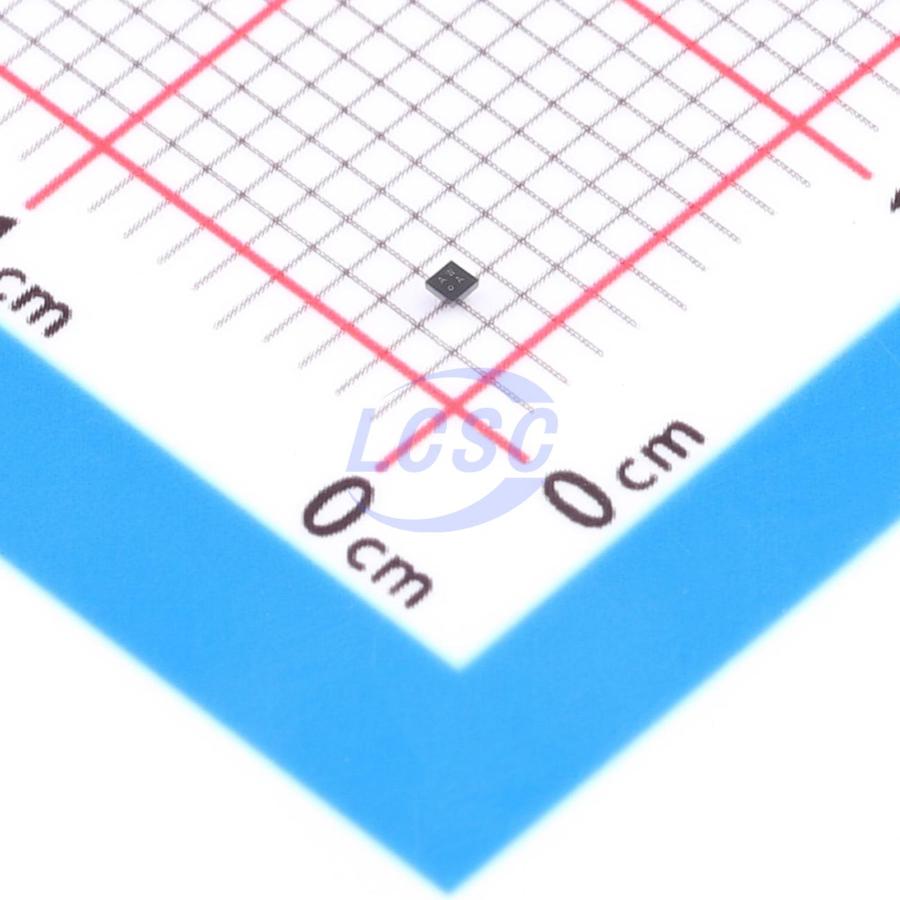

SK1826A

Active High 1.5A Load Switch WLCSP-4(0.8x0.8) Power Distribution Switches, Load Drivers

WLCSP-4(0.8x0.8)RoHSActive

Manufacturer: Suntek
Manufacturer part #: SK1826A
Store part #: C53360303
Package / case: WLCSP-4(0.8x0.8)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,530 in stock

#C53360303

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹25.49	₹127.45
50+	₹20.03	₹1,001.50
150+	₹17.69	₹2,653.50
500+	₹14.78	₹7,390.00
3,000+	₹13.47	₹40,410.00
6,000+	₹12.69	₹76,140.00

Quantity (min 5, multiples of 5)

5 × ₹25.49

₹127.45

excl. GST

₹150.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SK1826A

₹127.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Control Input Logic: Active High
Maximum Continuous Current: 1.5A
RDS(on): 48mΩ
Operating Voltage: 1.2V~5.5V
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The SK1826A series devices are low on-resistance MOSFETs controlled by external logic pins, optimized for battery life and autonomy in portable devices. Each device contains a P-channel MOSFET with an operating input voltage range of 1.2V to 5.5V. The ON/OFF input (ON) controls the switch and is compatible with low-voltage control signals. For the SK1826A and SK1826AS, an on-chip 130Ω load resistor is added for fast discharge of the output when the switch is turned off. The SK1826AS and SK1826ASN are available in SOT23-6 packages, while the SK1826A and SK1826AN are available in WLCSP-4 packages with 0.4mm pitch.

Applications

Mobile phones
GPS devices
Digital cameras
Peripheral ports
Portable instruments
RF modules
Personal Digital Assistants (PDA)

Key features

Low input voltage: 1.2V to 5.5V
CSP4 ultra-low on-resistance: RON = 48mΩ at VIN = 5.0V; RON = 53mΩ at VIN = 4.2V; RON = 56mΩ at VIN = 3.6V; RON = 67mΩ at VIN = 2.5V; RON = 87mΩ at VIN = 1.8V; RON = 160mΩ at VIN = 1.2V
DC current up to 1.5A
Ultra-low quiescent current: 80nA at 1.8V
Ultra-low shutdown current: 7.5nA at 1.8V
Low control input threshold, compatible with 1.2V/1.8V/3.6V/4.2V/5.0V logic
Controllable slew rate to prevent inrush current
Reverse current protection
