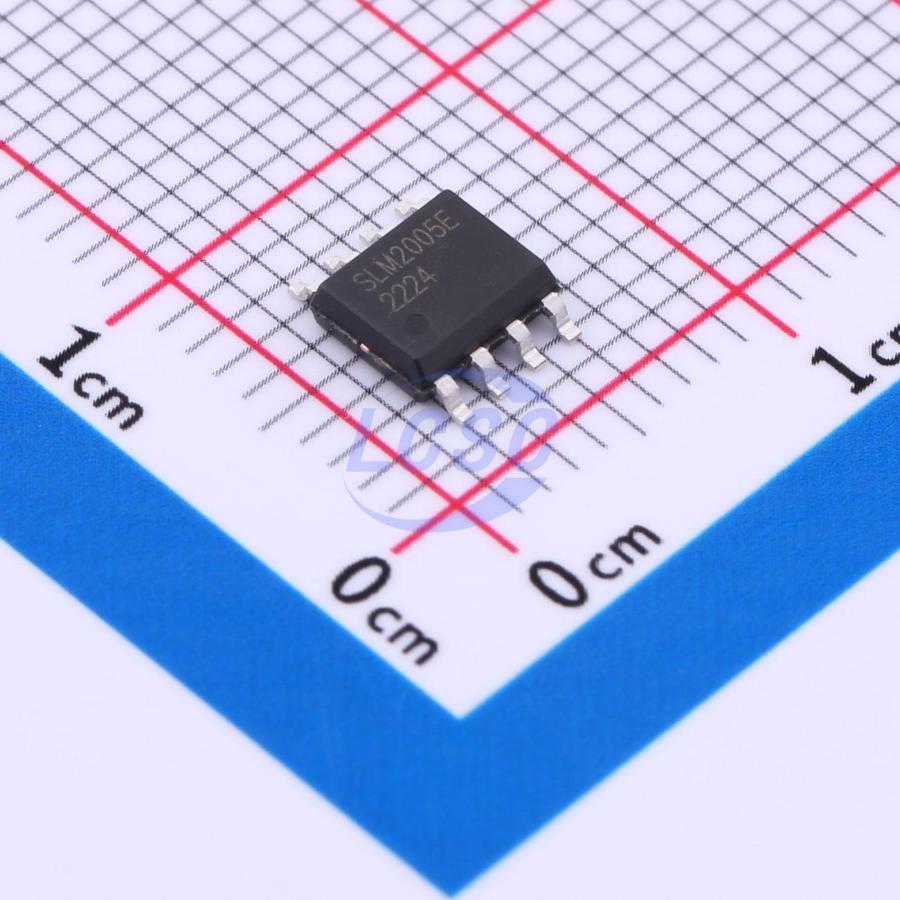

SLM2005ECA-DG
10V~18V 1A 1.5A SOP-8 Gate Drivers
200V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SLM2005ECA-DG
- Store part #
- C5298378
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,560 in stock
#C5298378
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.08 | ₹145.40 |
| 50+ | ₹22.64 | ₹1,132.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹16.42 | ₹8,210.00 |
| 2,500+ | ₹16.29 | ₹40,725.00 |
| 4,000+ | ₹15.37 | ₹61,480.00 |
5 × ₹29.08
₹145.40
excl. GST
₹171.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SLM2005ECA-DG
₹145.40 for 5 + GST
Specifications
- Quiescent Current
- 230uA
- Voltage - Supply
- 10V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 25ns
- Fall Time
- 10ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The SLM2005E is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 200 V.
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +200 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 18 V
- Undervoltage lockout
- 3.3 V, 5 V logic compatible
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internal set deadtime
- High-side/Low-side output in phase with HIN/LIN input
- RoHS compliant SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SLM2009CA-DG#C3001941Sillumin · SOIC-8 | Sillumin | SOIC-8 | 3,855 | ₹20.80 · 3,855 in stock | View |
