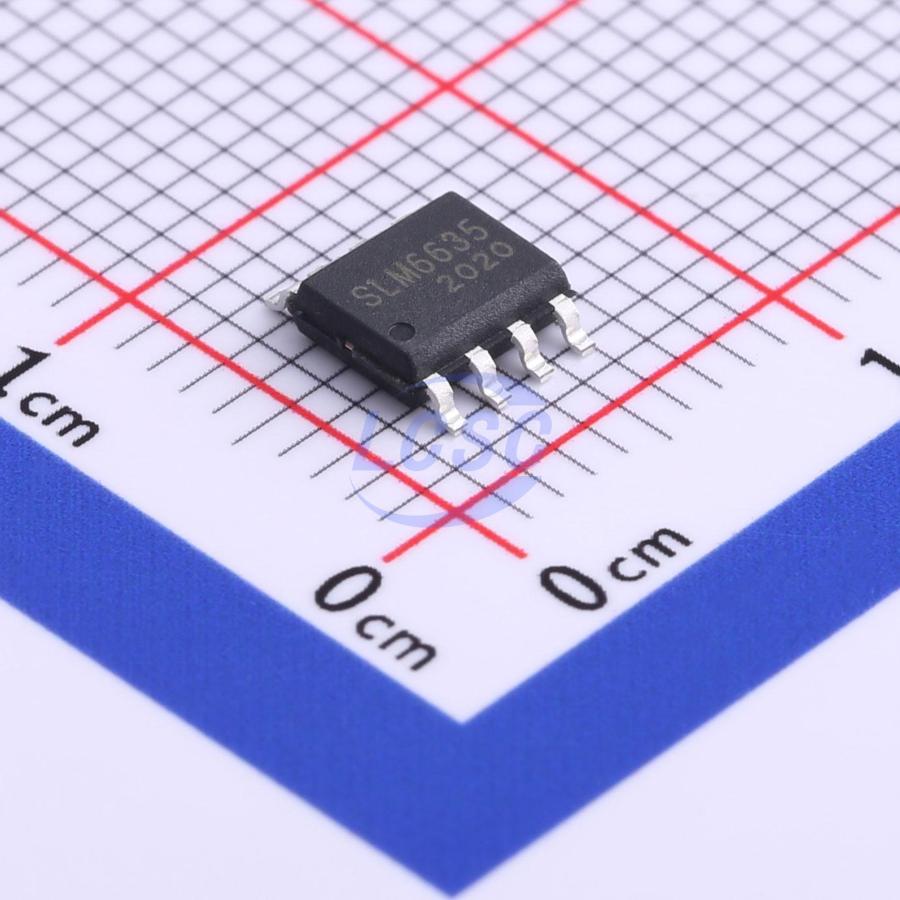

SLM6635
Lithium Battery 3.5A ESOP-8 Battery Management RoHS
3A Synchronous Buck Li-lon Battery Charger
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM6635
- Store part #
- C711586
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,104 in stock
#C711586
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.74 | ₹57.74 |
| 10+ | ₹44.76 | ₹447.60 |
| 30+ | ₹39.36 | ₹1,180.80 |
| 100+ | ₹32.44 | ₹3,244.00 |
| 500+ | ₹29.62 | ₹14,810.00 |
| 1,000+ | ₹27.90 | ₹27,900.00 |
1 × ₹57.74
₹57.74
excl. GST
₹68.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM6635
₹57.74 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 70uA
- Operating Voltage
- 4V~6V
- Type of Battery
- Lithium Battery
- The Chip Type
- Charging IC
- Charge Current - Max
- 3.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.132 g
Overview
The SLM6635 is a 3A single cell Li-ion battery charger applied for 5V adapters. It utilizes 0.8MHz synchronous buck converter topology to reduce power dissipation and therefore reaches a high efficiency up to 92%. The SLM6635 includes complete charge termination circuitry, automatic recharge, and a ±1% 4.35V float voltage. It also has other features include output short-circuit protection, battery temperature monitor, overheating protection, and no blocking diode is required. The SLM6635 is available in ESOP8 package with heat sink. Its few external component count makes the SLM6635 a high-efficient battery charger ideally suited for portable applications.
Applications
- Cellular Telephones
- MP3, MP4 Players
- GPS, Digital Cameras
- Electronic Dictionaries
- Portable Devices, Chargers
Key features
- 0.8MHz Fixed Switching Frequency
- High Efficiency up to 92%
- 3.5A Maximum Charge Current
- No External MOSFET or Blocking Diode Required
- Preset 4.35V Charge Voltage with ±1% Accuracy
- Automatic Recharge
- Charge State Pairs of Output, No Battery and Fault Status Display
- 70uA Supply Current in Shutdown
- 2.9V Trickle Charge
- Soft-Start Limits Inrush Current
- Battery Temperature Monitoring
- Short-Circuit Protection Available in 8-Pin ESOP Package
