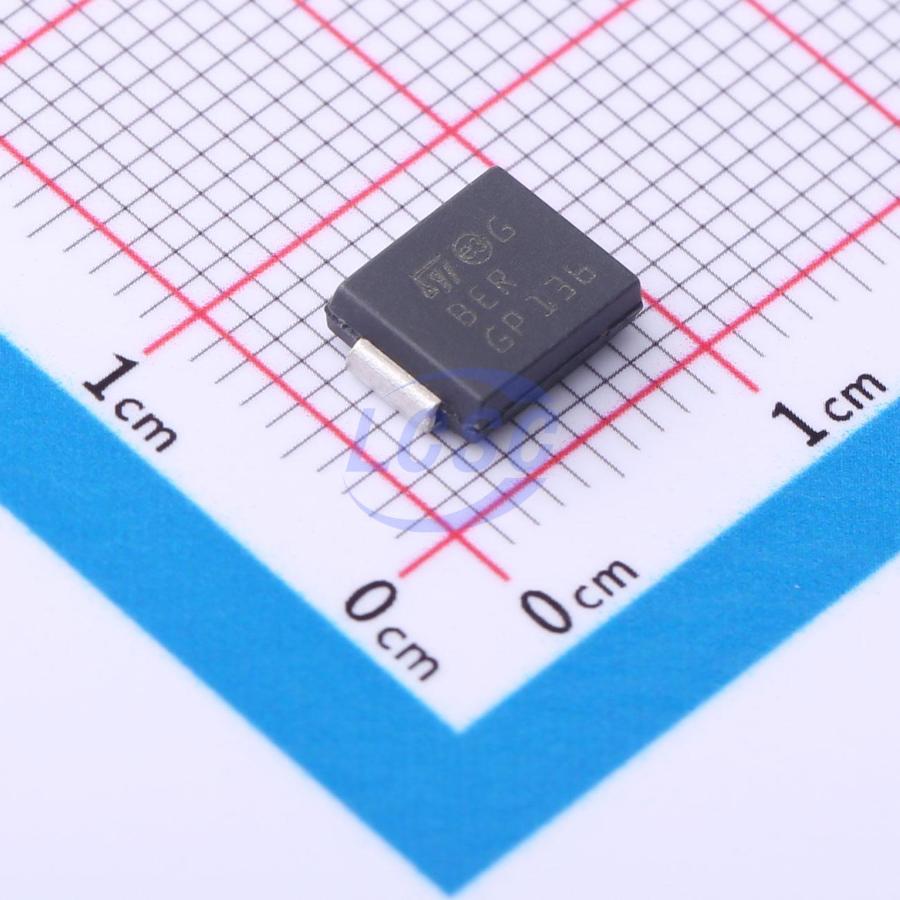

SM15T30CA
53.5VC Clamp 187A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 25.6VWM 53.5VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- SM15T30CA
- Store part #
- C81476
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
133 in stock
#C81476
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.17 | ₹75.17 |
| 10+ | ₹59.31 | ₹593.10 |
| 30+ | ₹52.58 | ₹1,577.40 |
| 100+ | ₹44.11 | ₹4,411.00 |
| 500+ | ₹40.42 | ₹20,210.00 |
| 1,000+ | ₹38.02 | ₹38,020.00 |
1 × ₹75.17
₹75.17
excl. GST
₹88.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T30CA
₹75.17 for 1 + GST
Specifications
- Clamping Voltage
- 53.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 187A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 28.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 25.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
The SM15T TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000- 4- 2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000- 4- 4 and 5. They are used for surges below 1500 W 10/1000 μs. This planar technology makes it compatible with high- end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power:
- 1500 W (10/1000 μs)
- up to 10 kW (8/20 μs)
- Stand- off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25℃
- Operating Tj max: 150℃
- High power capability at Tj max.: up to 1250 W (10/1000 μs)
- Lead finishing: matte tin plating
- UL94, V0
- J- STD- 020 MSL level 1
- J- STD- 002, JESD 22- B102 E3 and MIL- STD- 750, method 2026
- JESD- 201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- UL 497B file number: QVGQ2. E136224
- IEC 61000- 4- 4 level 4:
- 4 kV
- IEC 61000- 4- 2, C = 150 pF, R = 330 Ω exceeds level 4:
- 30 kV (air discharge)
- 30 kV (contact discharge)
