VISHAYDatasheet (PDF)

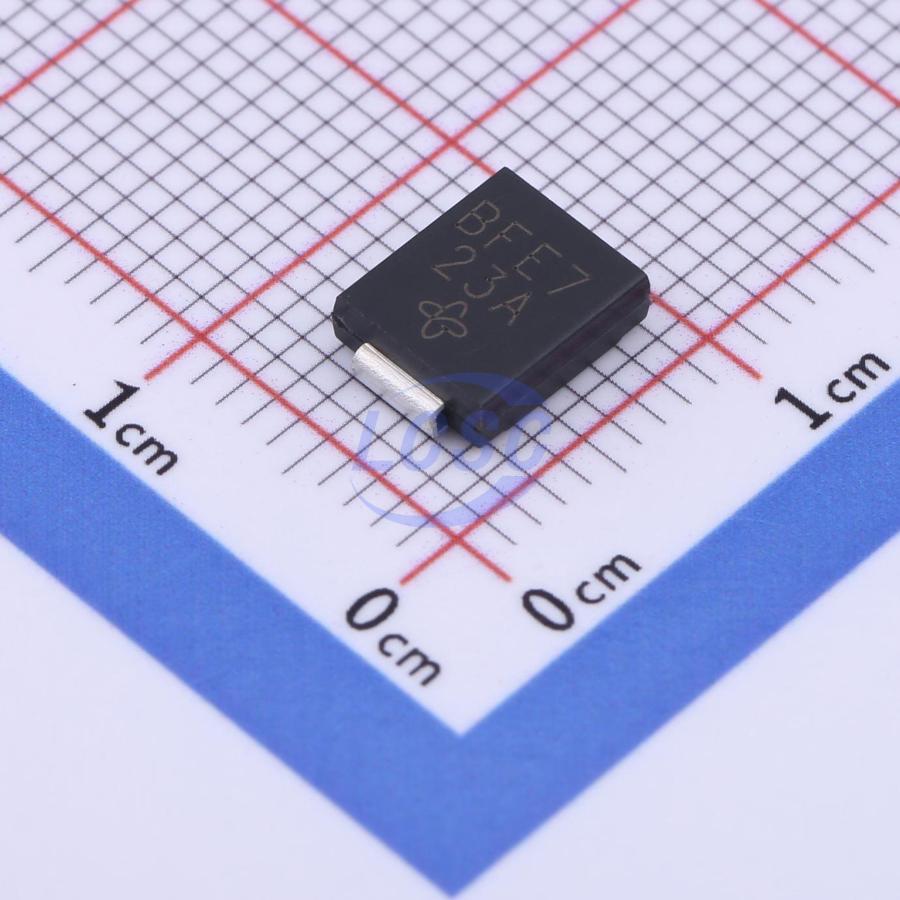

SM15T30CA-E3/57T
41.5VC Clamp 36A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 25.6VWM 41.5VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SM15T30CA-E3/57T
- Store part #
- C1976220
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
650 in stock
#C1976220
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.00 | ₹245.00 |
| 50+ | ₹38.90 | ₹1,945.00 |
| 150+ | ₹34.57 | ₹5,185.50 |
| 850+ | ₹29.17 | ₹24,794.50 |
| 2,550+ | ₹26.76 | ₹68,238.00 |
| 5,100+ | ₹25.32 | ₹1,29,132.00 |
5 × ₹49.00
₹245.00
excl. GST
₹289.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SM15T30CA-E3/57T
₹245.00 for 5 + GST
Specifications
- Clamping Voltage
- 53.5V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 36A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 25.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement RoHS
- Glass passivated chip junction COMPLIANT HALOGEN
- Available in uni-directional and bi-directional FREE Available
- 1500 W peak pulse power capability with a 10/1000 μs waveform
- Excellent clamping capability
- Low inductance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM15T30CA#C81476ST · SMC(DO-214AB) | ST | SMC(DO-214AB) | 133 | ₹75.17 · 133 in stock | View |
 | 1.5SMC33CAQ#C5861873YANGJIE · DO-214AB(SMC) | YANGJIE | DO-214AB(SMC) | 5,942 | ₹50.60 · 5,942 in stock | View |
 | SMCJ28CA/TR13#C310045Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 1,415 | ₹20.74 · 1,415 in stock | View |
 | SMCJ28CA#C720069Littelfuse · DO-214AB | Littelfuse | DO-214AB | 3,975 | ₹42.35 · 3,975 in stock | View |
 | SMCJ28CA#C2683737ZHIDE · SMC | ZHIDE | SMC | 3,805 | ₹22.29 · 3,805 in stock | View |
