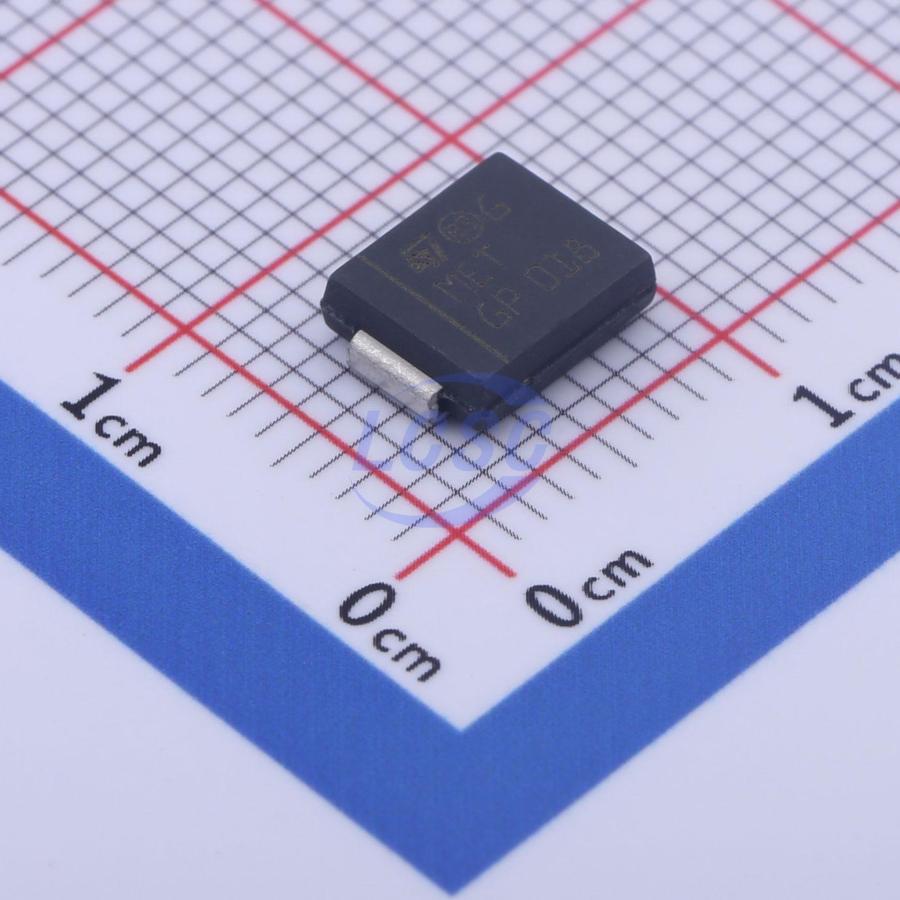

SM15T33A
59VC Clamp 169A@8/20us Ipp TVS DIODE SMC
TVS DIODE 31.4VWM 59VC SMC
- Manufacturer
- ST
- Manufacturer part #
- SM15T33A
- Store part #
- C1973298
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,681 in stock
#C1973298
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.89 | ₹80.89 |
| 10+ | ₹60.61 | ₹606.10 |
| 30+ | ₹51.68 | ₹1,550.40 |
| 100+ | ₹40.77 | ₹4,077.00 |
| 500+ | ₹35.97 | ₹17,985.00 |
| 1,000+ | ₹33.14 | ₹33,140.00 |
1 × ₹80.89
₹80.89
excl. GST
₹95.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T33A
₹80.89 for 1 + GST
Specifications
- Clamping Voltage
- 59V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 169A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 10kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 31.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The SM15T TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 μs) up to 10 kW (8/20 μs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 1250 W (10/1000 µs)
- Lead finishing: matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMC33A#C720186Littelfuse · DO-214AB | Littelfuse | DO-214AB | 1,190 | ₹45.55 · 1,190 in stock | View |
 | 1.5SMC33A#C19192049BOURNS · DO-214AB | BOURNS | DO-214AB | 20 | ₹62.55 · 20 in stock | View |
 | SM15T36A#C133706ST · SMC | ST | SMC | 5,184 | ₹72.62 · 5,184 in stock | View |
 | SM15T36AY#C1975694ST · SMC | ST | SMC | 79 | ₹90.40 · 79 in stock | View |
 | SM15T30AY#C1976880ST · SMC | ST | SMC | 3 | ₹279.51 · 3 in stock | View |
