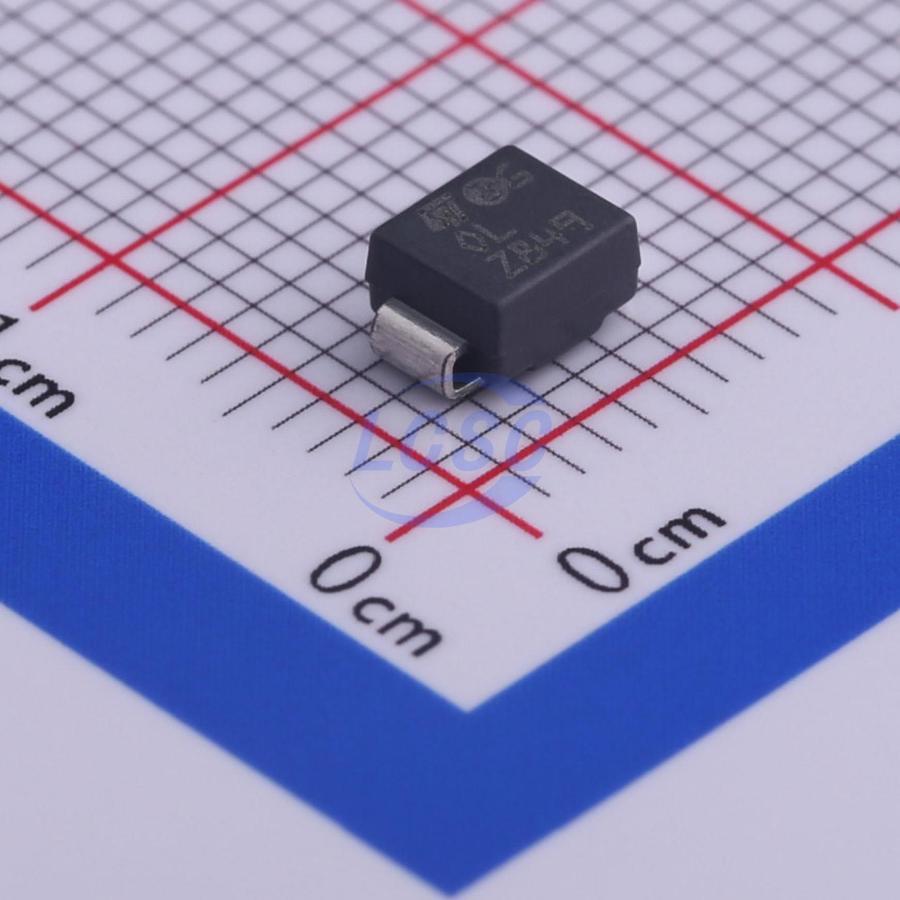

SM6T150CA
265VC Clamp 15A@8/20us Ipp TVS DIODE DO-214AA(SMB)
- Manufacturer
- ST
- Manufacturer part #
- SM6T150CA
- Store part #
- C472535
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C472535
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.39 | ₹211.95 |
| 50+ | ₹33.02 | ₹1,651.00 |
| 150+ | ₹29.01 | ₹4,351.50 |
| 500+ | ₹24.01 | ₹12,005.00 |
| 2,500+ | ₹21.78 | ₹54,450.00 |
| 5,000+ | ₹20.44 | ₹1,02,200.00 |
5 × ₹42.39
₹211.95
excl. GST
₹250.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM6T150CA
₹211.95 for 5 + GST
Specifications
- Clamping Voltage
- 265V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 15A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 143V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA;1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 128V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The SM6T Transil series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5. These devices are more generally used against surges below 600 W (10/1000 μs). The Planar technology makes it suitable for highend equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. SM6T are packaged in SMB (SMB footprint in accordance with IPC 7531 standard).
Key features
- Peak pulse power: 600 W (10/1000 μs) 4 kW (8/20 μs)
- Stand-off voltage range: from 6.8 V to 220 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 °C 1 μA at 85 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: 515 W (10/1000 μs)
- JEDEC registered package outline
- IEC 61000-4-2 level 4: 15 kV (air discharge) 8 kV (contact discharge)
- IEC 61000-4-5
- MIL STD 883G, method 3015-7: class 3B: 25 kV HBM (human body model)
- UL 497B, file number: QVGQ2.E136224
- Resin meets UL 94, V0
- MIL-STD-750, method 2026 solderability
- EIA STD RS-481 and IEC 60286-3 packing IPC 7531 footprint
