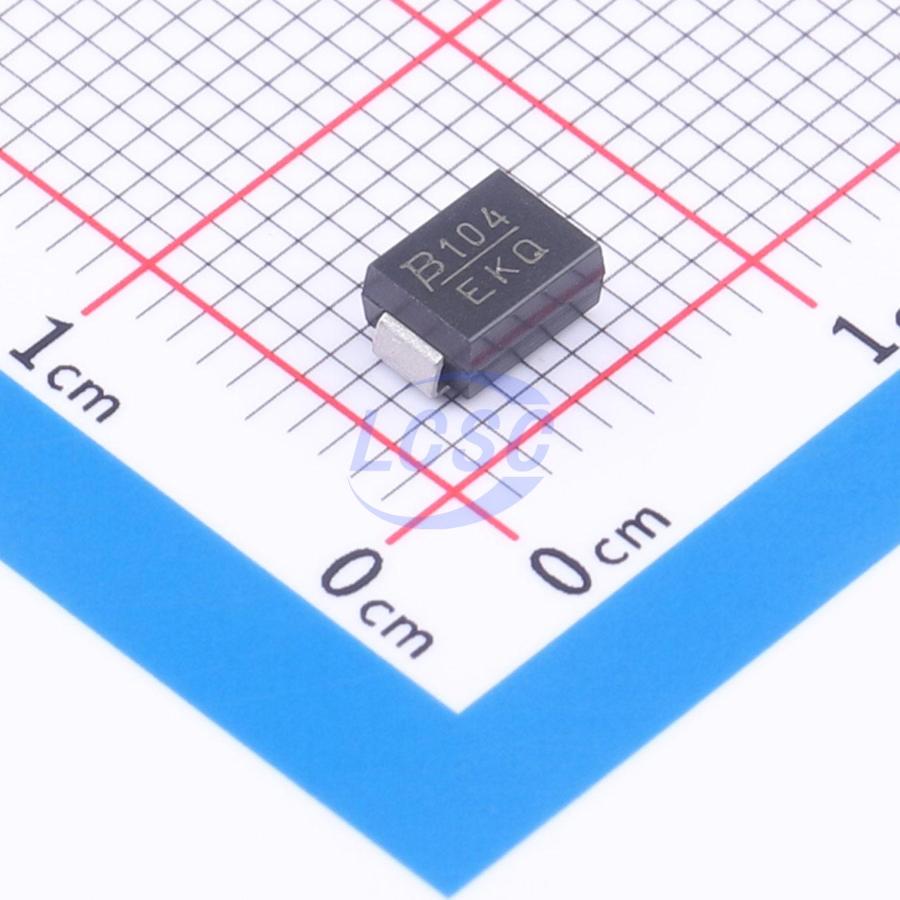

SMBJ130CA-Q
271.7VC Clamp 14.5A@8/20us Ipp TVS DIODE SMB(DO-214AA)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMBJ130CA-Q
- Store part #
- C1518445
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1518445
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.61 | ₹146.61 |
| 10+ | ₹118.59 | ₹1,185.90 |
| 30+ | ₹104.69 | ₹3,140.70 |
| 100+ | ₹91.01 | ₹9,101.00 |
1 × ₹146.61
₹146.61
excl. GST
₹173.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ130CA-Q
₹146.61 for 1 + GST
Specifications
- Clamping Voltage
- 271.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 159V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 130V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.163 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 220 V. Typical fast response times are less than 1.0 picosecond from 0 to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Entertainment applications
- Comfort applications
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMB package
- Standoff Voltage: 5 to 220 volts
- Power Dissipation: 600 watts
- RoHS compliant
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM6T100CA-E3/52#C1973613VISHAY · DO-214AA(SMBJ) | VISHAY | DO-214AA(SMBJ) | 100 | ₹51.07 · 100 in stock | View |
 | SM6T150CA#C472535ST · DO-214AA(SMB) | ST | DO-214AA(SMB) | 35 | ₹42.39 · 35 in stock | View |
| P6SMB160CA#C3719027Littelfuse · DO-214AA(SMBJ) | Littelfuse | DO-214AA(SMBJ) | 3,000 | ₹25.11 · 3,000 in stock | View | |
 | P6SMB160CA#C20602824YANGJIE · DO-214AA(SMB) | YANGJIE | DO-214AA(SMB) | 1,195 | ₹11.99 · 1,195 in stock | View |
 | SMBJ140CA#C283994DOWO · SMB(DO-214AA) | DOWO | SMB(DO-214AA) | 5,720 | ₹5.29 · 5,720 in stock | View |
