VISHAYDatasheet (PDF)

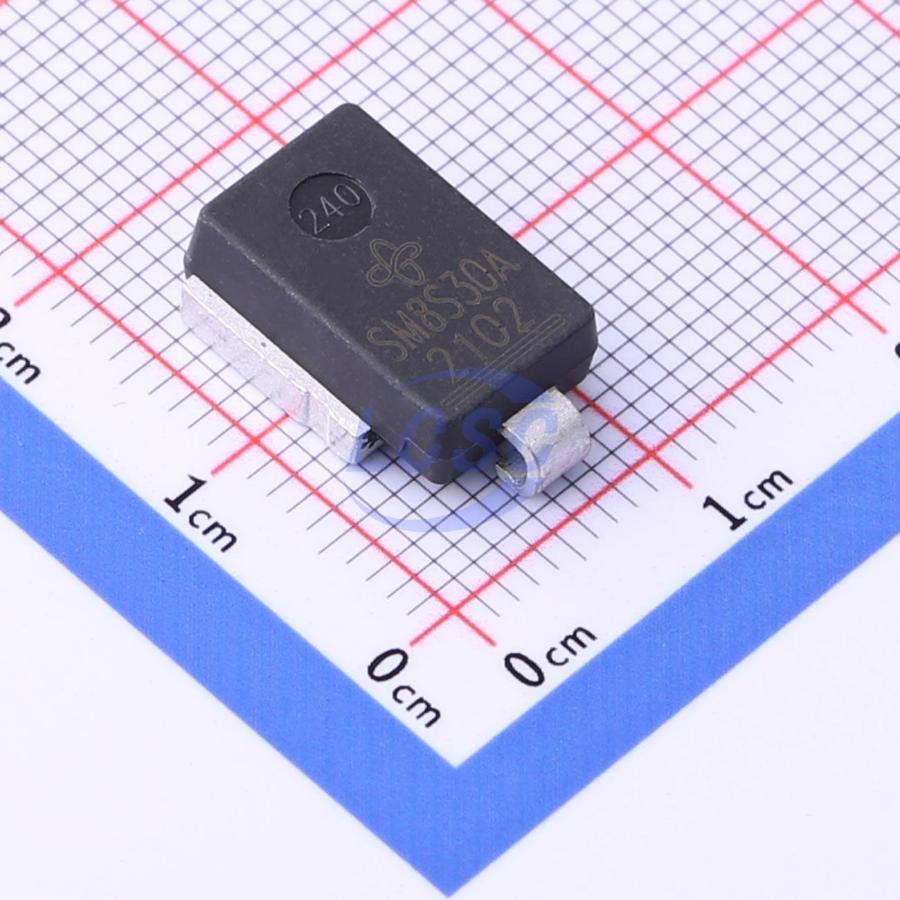

SM8S30AHE3_A/I
48.4VC Clamp 136A@10/1000us Ipp TVS DIODE DO-218AB
DO-218ABROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC DO-218AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S30AHE3_A/I
- Store part #
- C1973012
- Package / case
- DO-218AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
641 in stock
#C1973012
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹228.16 | ₹228.16 |
| 10+ | ₹197.31 | ₹1,973.10 |
| 30+ | ₹180.36 | ₹5,410.80 |
| 100+ | ₹161.02 | ₹16,102.00 |
| 750+ | ₹152.56 | ₹1,14,420.00 |
| 1,500+ | ₹148.64 | ₹2,22,960.00 |
1 × ₹228.16
₹228.16
excl. GST
₹269.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S30AHE3_A/I
₹228.16 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Peak Pulse Current (Ipp)
- 136A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.92 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability e3 and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S30A-MS#C19272801MSKSEMI · DO-218AB | MSKSEMI | DO-218AB | 31 | ₹145.32 · 31 in stock | View |
 | SM8S30ATHE3/I#C1977310VISHAY · DO-218AC | VISHAY | DO-218AC | 9 | ₹659.97 · 9 in stock | View |
 | SM8S30AQ#C20603602YANGJIE · DO-218AB | YANGJIE | DO-218AB | 765 | ₹205.13 · 765 in stock | View |
| SM8S30AHM3/I#C24283140VISHAY · DO-218AB | VISHAY | DO-218AB | 529 | ₹165.38 · 529 in stock | View | |
 | SM8S30A#C284115DOWO · DO-218AB | DOWO | DO-218AB | 1,489 | ₹165.79 · 1,489 in stock | View |
