VISHAYDatasheet (PDF)

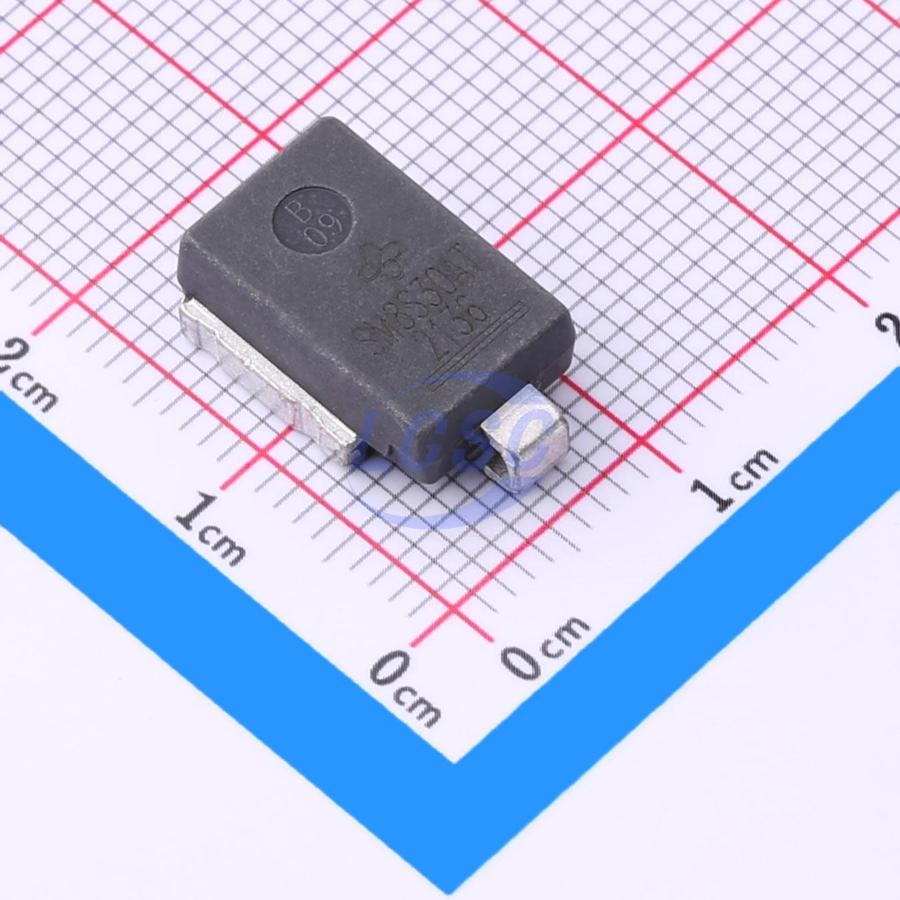

SM8S30ATHE3/I
48.4VC Clamp 136A@10/1000us Ipp TVS DIODE DO-218AC
DO-218ACROHS3 CompliantDiscontinued
TVS DIODE 30VWM 48.4VC DO-218AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S30ATHE3/I
- Store part #
- C1977310
- Package / case
- DO-218AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C1977310
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹659.97 | ₹659.97 |
| 10+ | ₹559.15 | ₹5,591.50 |
| 30+ | ₹499.25 | ₹14,977.50 |
| 100+ | ₹438.72 | ₹43,872.00 |
| 750+ | ₹410.96 | ₹3,08,220.00 |
| 1,500+ | ₹398.24 | ₹5,97,360.00 |
1 × ₹659.97
₹659.97
excl. GST
₹778.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S30ATHE3/I
₹659.97 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 136A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.5 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S30A-MS#C19272801MSKSEMI · DO-218AB | MSKSEMI | DO-218AB | 31 | ₹145.32 · 31 in stock | View |
 | SM8S30AQ#C20603602YANGJIE · DO-218AB | YANGJIE | DO-218AB | 765 | ₹205.13 · 765 in stock | View |
| SM8S30AHM3/I#C24283140VISHAY · DO-218AB | VISHAY | DO-218AB | 529 | ₹165.38 · 529 in stock | View | |
 | SM8S30AHE3_A/I#C1973012VISHAY · DO-218AB | VISHAY | DO-218AB | 641 | ₹228.16 · 641 in stock | View |
 | SM8Z30A#C284117DOWO · DO-218AB | DOWO | DO-218AB | 747 | ₹174.83 · 747 in stock | View |
