DIODESDatasheet (PDF)

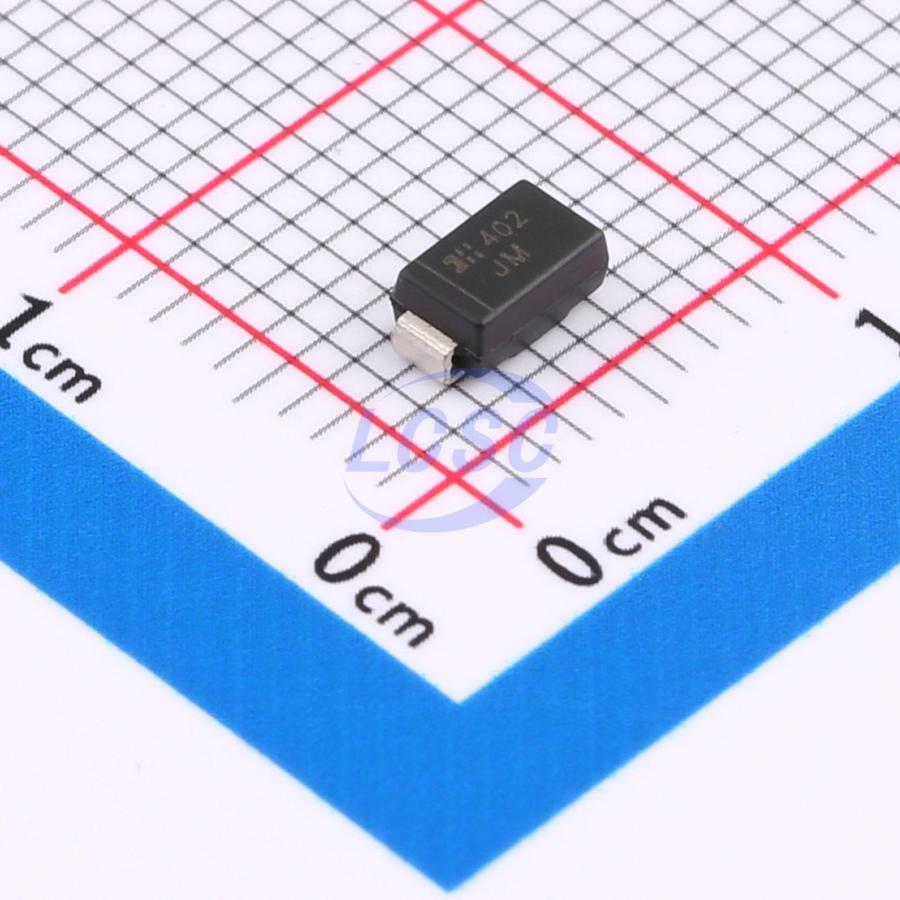

SMAJ33A-13-F
53.3VC Clamp 7.5A Ipp TVS DIODE SMA
SMAROHS CompliantActive
TVS DIODE 33VWM 53.3VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ33A-13-F
- Store part #
- C134981
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C134981
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.61 | ₹173.05 |
| 50+ | ₹27.98 | ₹1,399.00 |
| 150+ | ₹25.15 | ₹3,772.50 |
| 500+ | ₹21.60 | ₹10,800.00 |
| 2,500+ | ₹20.02 | ₹50,050.00 |
| 5,000+ | ₹19.08 | ₹95,400.00 |
5 × ₹34.61
₹173.05
excl. GST
₹204.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ33A-13-F
₹173.05 for 5 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ33AQ-13-F#C1974485DIODES · SMA | DIODES | SMA | 150 | ₹24.49 · 150 in stock | View |
 | SMAJ33A#C21714338Slkor · SMA(DO-214AC) | Slkor | SMA(DO-214AC) | 1,020 | ₹6.42 · 1,020 in stock | View |
 | CJSMAJ33A#C7499075JSCJ · SMAG | JSCJ | SMAG | 1,710 | ₹6.64 · 1,710 in stock | View |
 | SMAJ33A-E3/5A#C1975232VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 3,235 | ₹13.03 · 3,235 in stock | View |
 | SMAJ33A#C20883294OTW · SMA(DO-214AC) | OTW | SMA(DO-214AC) | 180 | ₹3.53 · 180 in stock | View |
