BOURNSDatasheet (PDF)

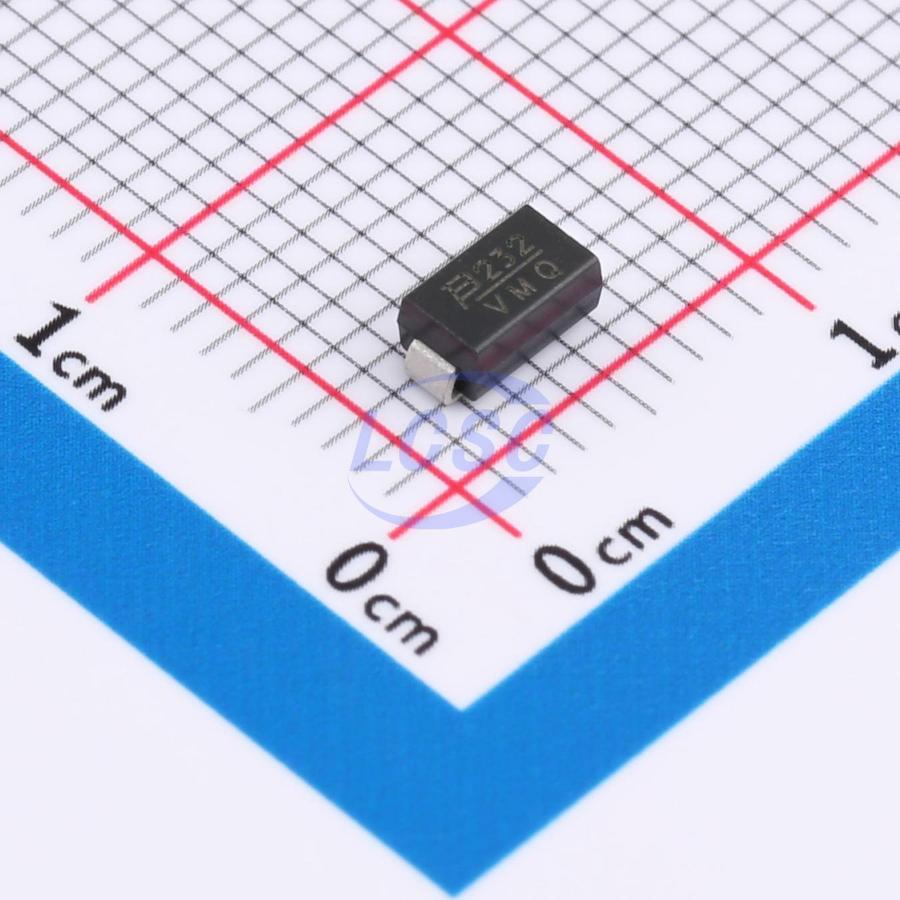

SMAJ33CA-Q
75.5VC Clamp 34.5A@8/20us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 33VWM 75.5VC SMA(DO-214AC)
- Manufacturer
- BOURNS
- Manufacturer part #
- SMAJ33CA-Q
- Store part #
- C1973988
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C1973988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.71 | ₹128.55 |
| 50+ | ₹25.15 | ₹1,257.50 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹24.41 | ₹12,205.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
Specifications
- Clamping Voltage
- 75.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 34.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 220 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMA package
- Standoff Voltage: 5 to 220 volts
- Power Dissipation: 400 watts
- RoHS compliant
- AEC-Q101 compliant
