TECH PUBLICDatasheet (PDF)

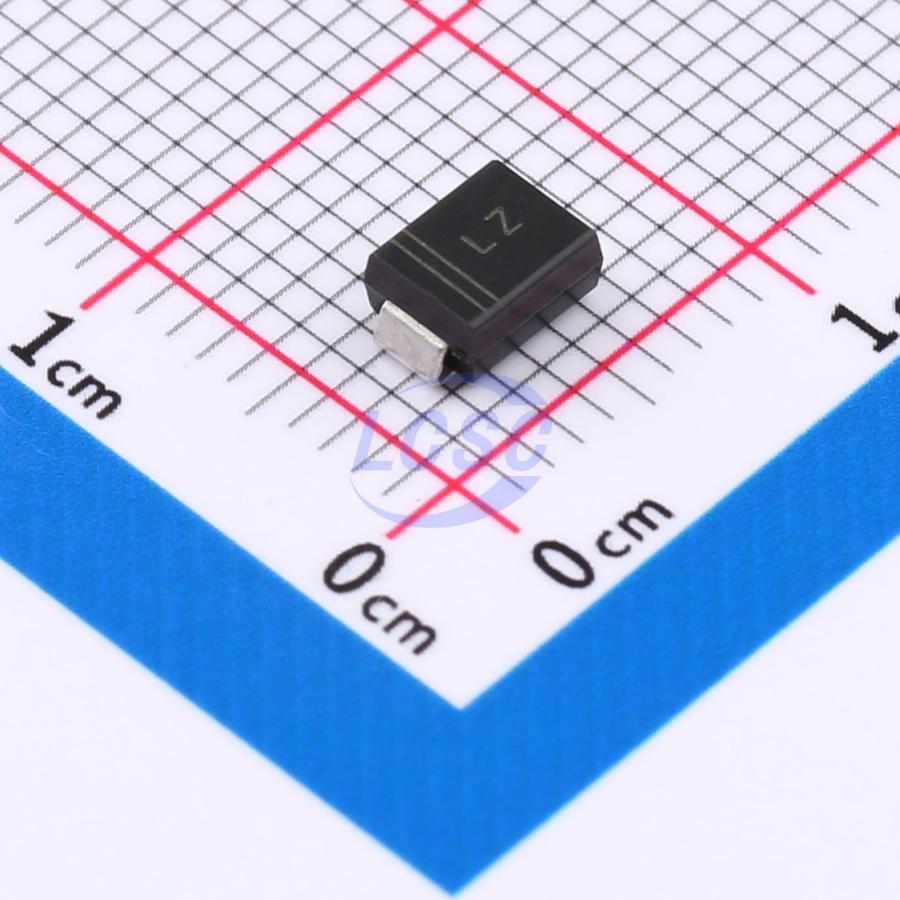

SMBJ24A
38.9VC Clamp 15.4A@10/1000us Ipp DO-214AA(SMB)
DO-214AA(SMB)RoHSActive
24VWM 38.9VC DO-214AA(SMB)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMBJ24A
- Store part #
- C41425647
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C41425647
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.69 | ₹56.90 |
| 100+ | ₹4.54 | ₹454.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 3,000+ | ₹3.52 | ₹10,560.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.69
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ24A
₹56.90 for 10 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 15.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.197 g
Overview
Applications
- Clamping Voltage
Key features
- 600W
- VRWM 5.0V - 440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMBJ24A#C41425682TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,960 | ₹7.57 · 2,960 in stock | View |
 | SMBJ26A#C41425648TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 1,230 | ₹5.69 · 1,230 in stock | View |
 | TPSMBJ26A#C41425683TECH PUBLIC · SMB | TECH PUBLIC | SMB | 1,970 | ₹7.10 · 1,970 in stock | View |
 | SMBJ22A#C53278469TECH PUBLIC · SMB | TECH PUBLIC | SMB | 5,140 | ₹5.85 · 5,140 in stock | View |
