TECH PUBLICDatasheet (PDF)

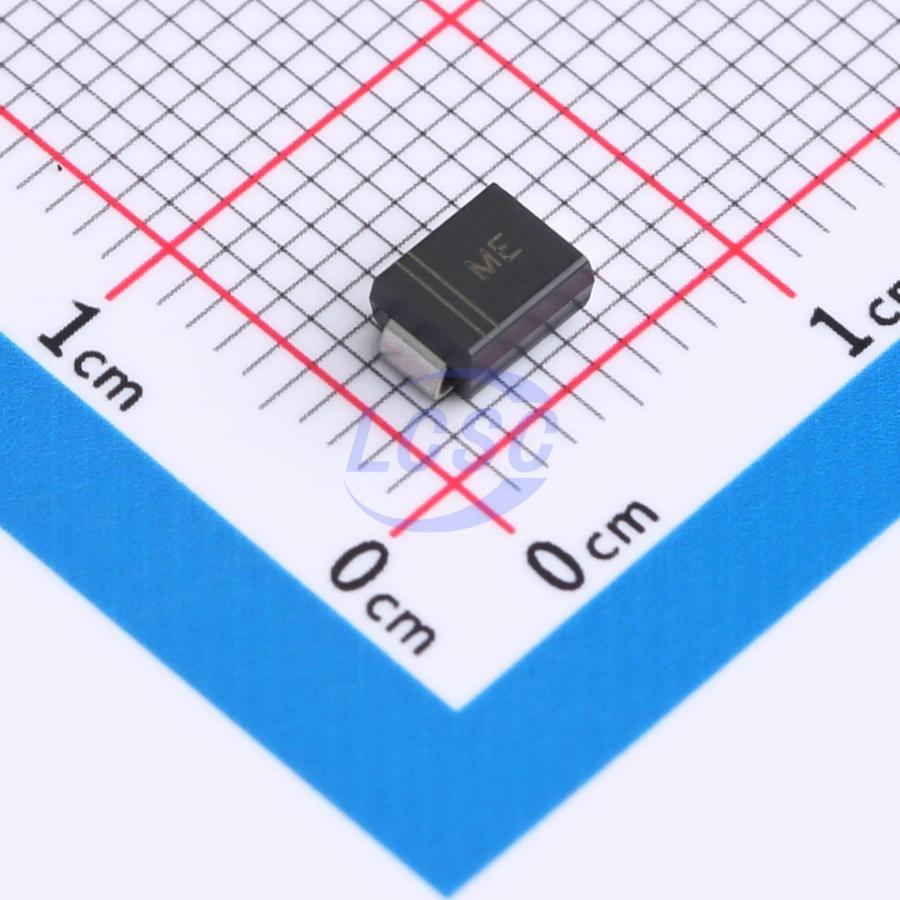

TPSMBJ26A
42.1VC Clamp 14.3A@10/1000us Ipp TVS DIODE SMB
SMBRoHSActive
TVS DIODE 26VWM 42.1VC SMB
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMBJ26A
- Store part #
- C41425683
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C41425683
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹5.66 | ₹566.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 3,000+ | ₹4.41 | ₹13,230.00 |
| 6,000+ | ₹3.97 | ₹23,820.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMBJ26A
₹71.00 for 10 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.202 g
Overview
Key features
- PPP 600W
- VRWM 5.0V-440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ26A#C41425648TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 1,230 | ₹5.69 · 1,230 in stock | View |
 | SMBJ24A#C41425647TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 2,310 | ₹5.69 · 2,310 in stock | View |
 | TPSMBJ24A#C41425682TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,960 | ₹7.57 · 2,960 in stock | View |
 | SMBJ28A#C42440491TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 25,220 | ₹3.92 · 25,220 in stock | View |
 | TPSMBJ28A#C42440526TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 2,490 | ₹5.86 · 2,490 in stock | View |
