DIODESDatasheet (PDF)

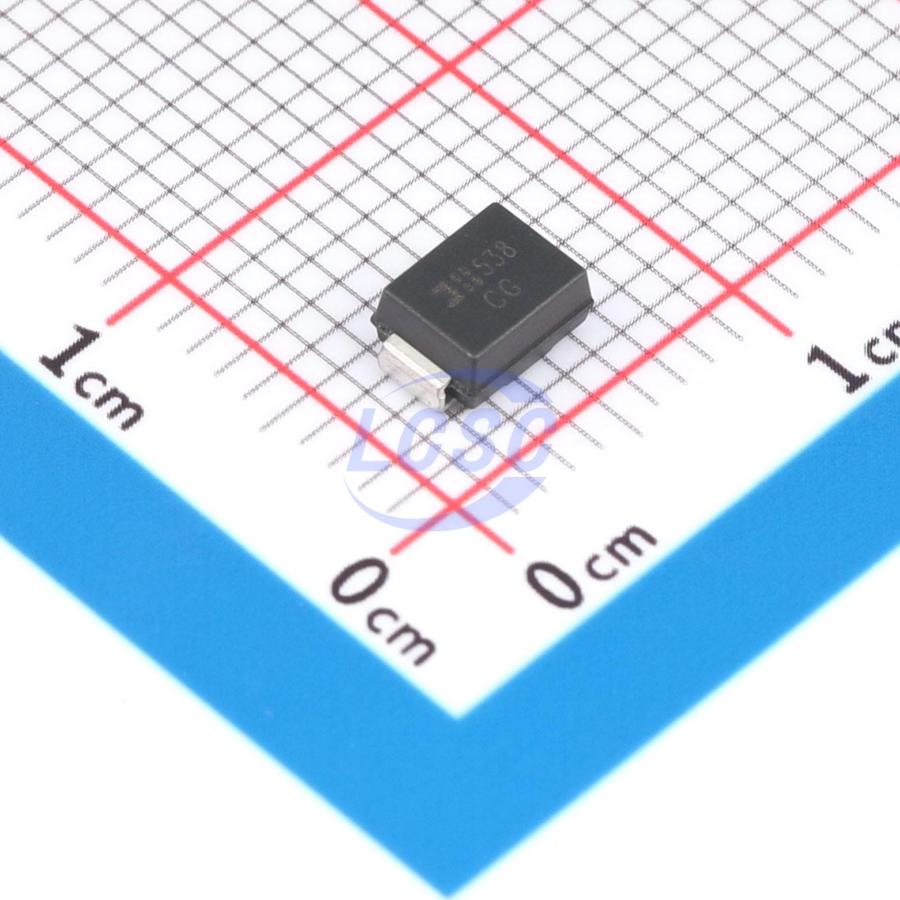

SMBJ28CAQ-13-F
45.4VC Clamp 13.2A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ28CAQ-13-F
- Store part #
- C1975352
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
505 in stock
#C1975352
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.47 | ₹282.35 |
| 50+ | ₹45.56 | ₹2,278.00 |
| 150+ | ₹40.88 | ₹6,132.00 |
| 500+ | ₹35.05 | ₹17,525.00 |
| 3,000+ | ₹32.45 | ₹97,350.00 |
| 6,000+ | ₹30.89 | ₹1,85,340.00 |
5 × ₹56.47
₹282.35
excl. GST
₹333.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ28CAQ-13-F
₹282.35 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 13.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 35.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 600W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ28CA-13-F#C135064DIODES · SMB | DIODES | SMB | 2,565 | ₹36.34 · 2,565 in stock | View |
 | SMBJ28CA#C5155133SURGING · DO-214AA | SURGING | DO-214AA | 2,640 | ₹6.58 · 2,640 in stock | View |
 | SMBJ28CA#C5353218FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,720 | ₹5.17 · 2,720 in stock | View |
 | SMBJ28CA#C19077583R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 43,590 | ₹6.97 · 43,590 in stock | View |
 | SZ1SMB28CAT3G#C1976399Littelfuse · SMB | Littelfuse | SMB | 2,415 | ₹29.42 · 2,415 in stock | View |
