VISHAYDatasheet (PDF)

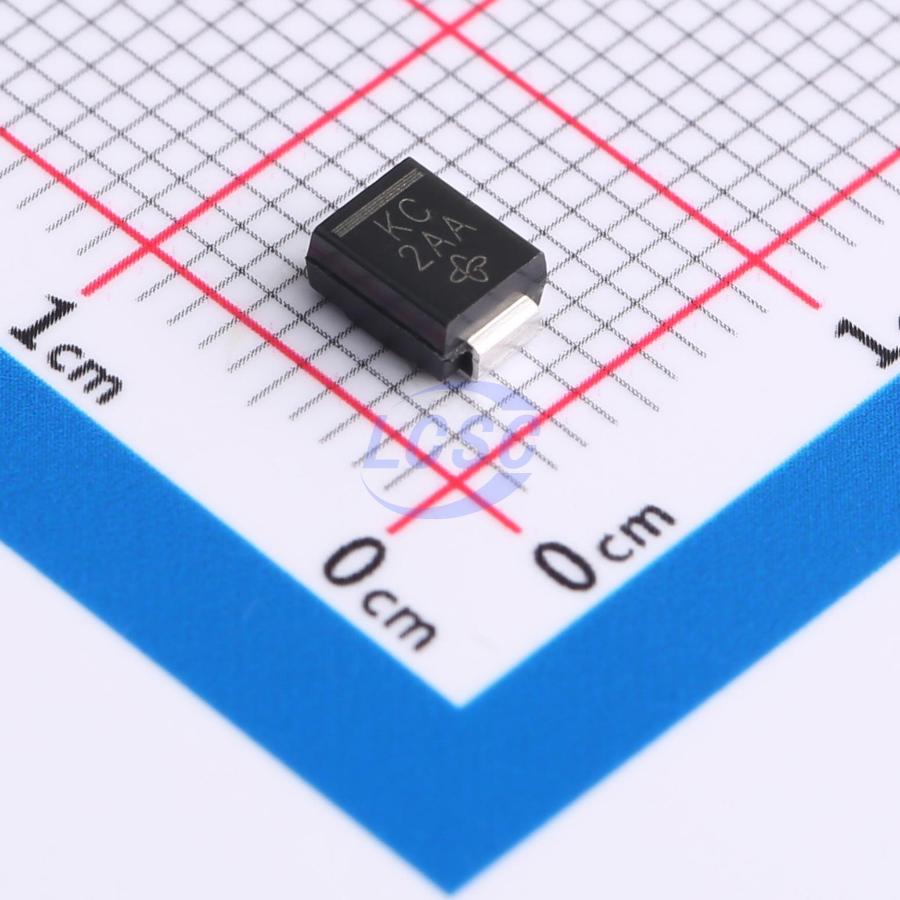

SMBJ3V3-E3/5B
10.3VC Clamp 200A@8/20us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 3.3VWM 10.3VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ3V3-E3/5B
- Store part #
- C1974754
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C1974754
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.41 | ₹207.05 |
| 50+ | ₹32.10 | ₹1,605.00 |
| 150+ | ₹28.09 | ₹4,213.50 |
| 500+ | ₹23.11 | ₹11,555.00 |
| 3,200+ | ₹20.89 | ₹66,848.00 |
| 6,400+ | ₹19.55 | ₹1,25,120.00 |
5 × ₹41.41
₹207.05
excl. GST
₹244.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
SMBJ3V3-E3/5B
₹207.05 for 5 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 200A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 4.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units specifically for protecting 3.3 V supplied sensitive equipment against transient overvoltages.
Key features
- Unidirectional polarity only
- Peak pulse power: 600 W (10/1000 μs)
- Excellent clamping capability
- Very fast response time
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMBJ3V3HE3_B/H#C20037770VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 835 | ₹37.72 · 835 in stock | View | |
 | SMBJ3V3-M3/52#C3707543VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 51 | ₹158.40 · 51 in stock | View |
 | SMBJ3V3-E3/52#C82082VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 10,070 | ₹39.98 · 10,070 in stock | View |
| SMBJ3V3-M3/5B#C1974605VISHAY · DO-214AA(SMBJ) | VISHAY | DO-214AA(SMBJ) | On request | ₹37.48 · 0 in stock | View | |
