VISHAYDatasheet (PDF)

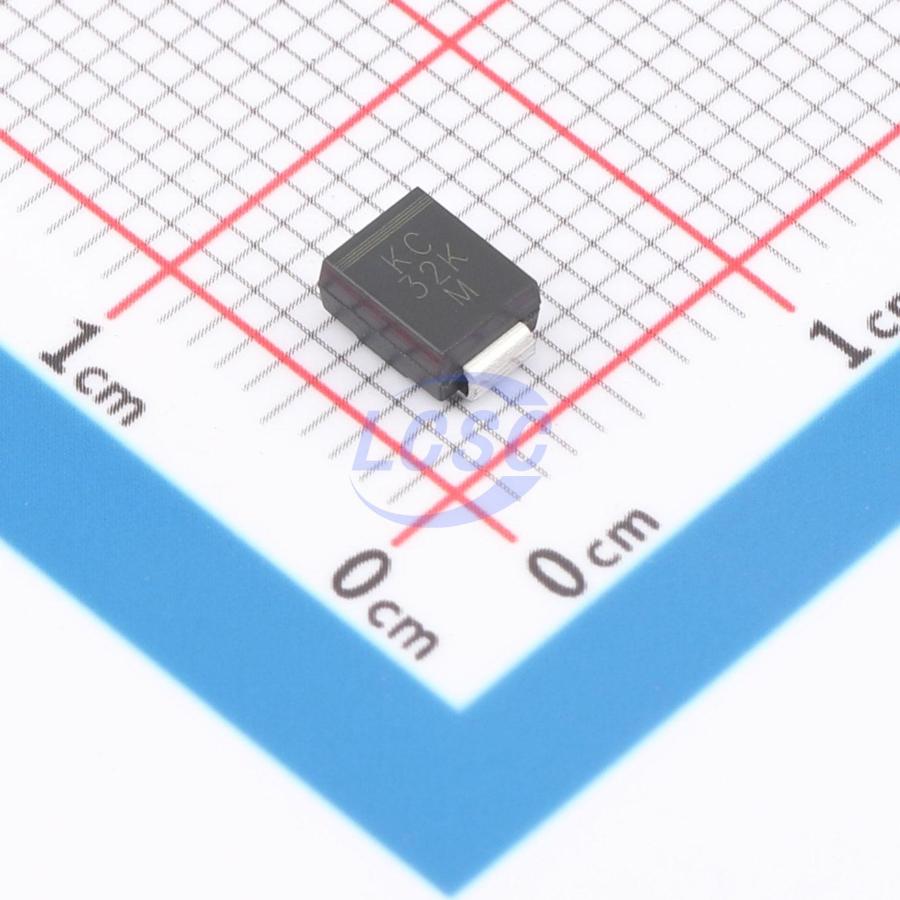

SMBJ3V3-M3/52
10.3VC Clamp 200A@8/20us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 3.3VWM 10.3VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ3V3-M3/52
- Store part #
- C3707543
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C3707543
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.40 | ₹158.40 |
| 10+ | ₹135.90 | ₹1,359.00 |
| 30+ | ₹124.75 | ₹3,742.50 |
| 100+ | ₹113.61 | ₹11,361.00 |
| 750+ | ₹106.96 | ₹80,220.00 |
| 1,500+ | ₹103.54 | ₹1,55,310.00 |
1 × ₹158.40
₹158.40
excl. GST
₹186.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ3V3-M3/52
₹158.40 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 200A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 4.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units specifically for protecting 3.3 V supplied sensitive equipment against transient overvoltages.
Key features
- Unidirectional polarity only Available
- Peak pulse power: 600 W (10/1000 μs)
- Excellent clamping capability
- Very fast response time
- RoHS COMPLIANT
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 °C
- HALOGEN FREE
- AEC - Q101 qualified available
- Automotive ordering code: base P/NHE3 or base P/NHM3
