DIODESDatasheet (PDF)

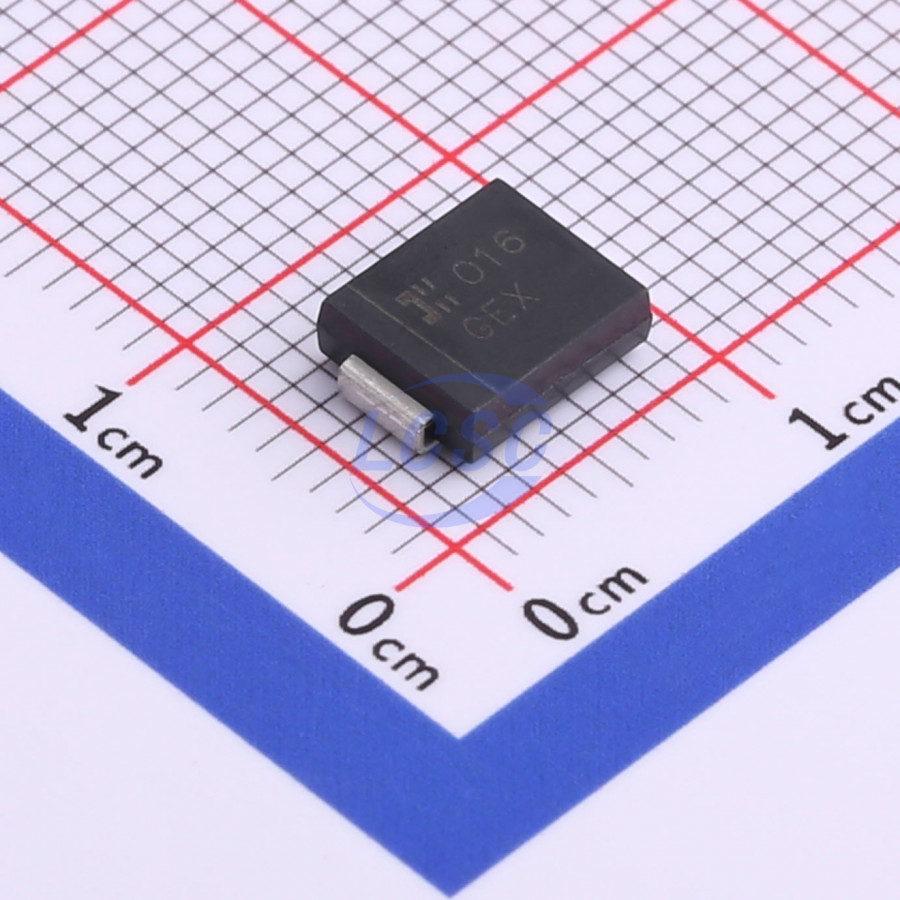

SMCJ22A-13-F
35.5VC Clamp 42.2A@8/20us Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 22VWM 35.5VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ22A-13-F
- Store part #
- C135152
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C135152
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.78 | ₹233.90 |
| 50+ | ₹37.81 | ₹1,890.50 |
| 150+ | ₹33.96 | ₹5,094.00 |
| 500+ | ₹29.17 | ₹14,585.00 |
| 3,000+ | ₹27.03 | ₹81,090.00 |
| 6,000+ | ₹25.75 | ₹1,54,500.00 |
5 × ₹46.78
₹233.90
excl. GST
₹276.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ22A-13-F
₹233.90 for 5 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 42.2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 27V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.359 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
