DIODESDatasheet (PDF)

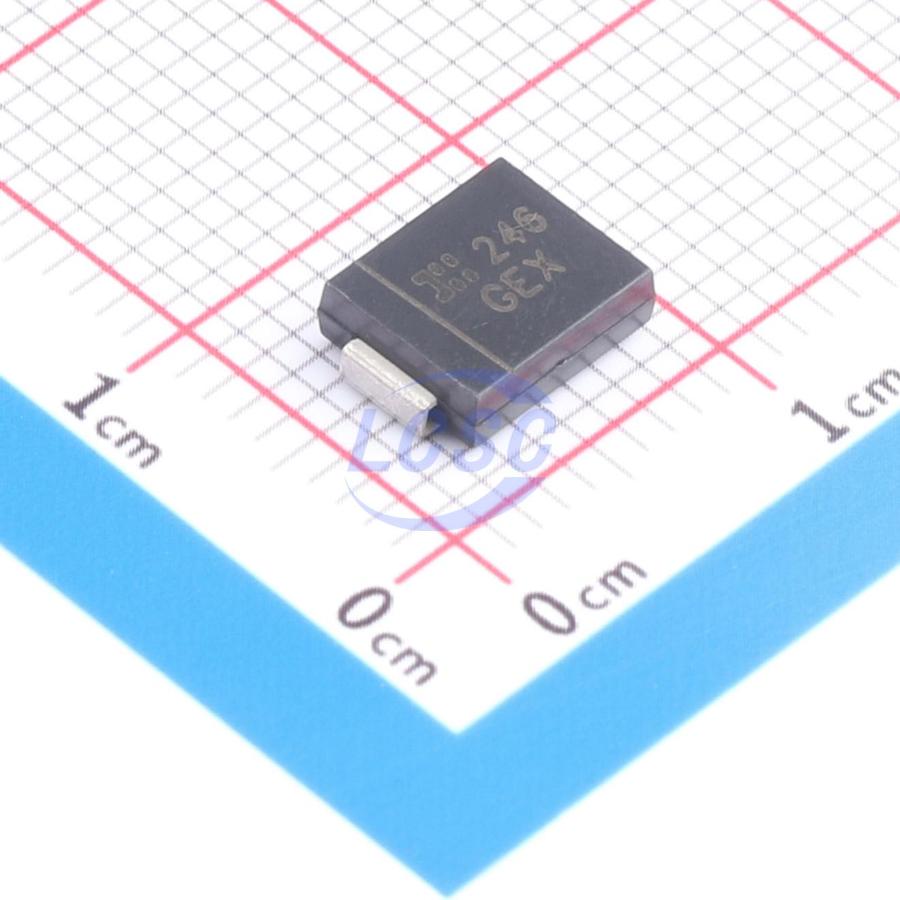

SMCJ22AQ-13-F
35.5VC Clamp 42.2A@10/1000us Ipp TVS DIODE SMC
SMCROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ22AQ-13-F
- Store part #
- C1976638
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C1976638
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.31 | ₹161.31 |
| 10+ | ₹157.20 | ₹1,572.00 |
| 30+ | ₹154.59 | ₹4,637.70 |
| 100+ | ₹151.77 | ₹15,177.00 |
1 × ₹161.31
₹161.31
excl. GST
₹190.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ22AQ-13-F
₹161.31 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 42.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 27V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605.
Key features
- 1,500W Peak Pulse Power Dissipation
- 5V to 110V Standoff Voltages
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ22A-13-F#C135152DIODES · SMC | DIODES | SMC | 15 | ₹46.78 · 15 in stock | View |
 | SMCJ22A#C53260908TECH PUBLIC · SMC | TECH PUBLIC | SMC | 3,385 | ₹13.36 · 3,385 in stock | View |
| SMCJ22A#C20604759YANGJIE · DO-214AB(SMC) | YANGJIE | DO-214AB(SMC) | 2,995 | ₹18.72 · 2,995 in stock | View | |
 | SMCJ22A#C5161469ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 200 | ₹20.27 · 200 in stock | View |
 | SMCJ22A#C4154614TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 1,005 | ₹13.98 · 1,005 in stock | View |
