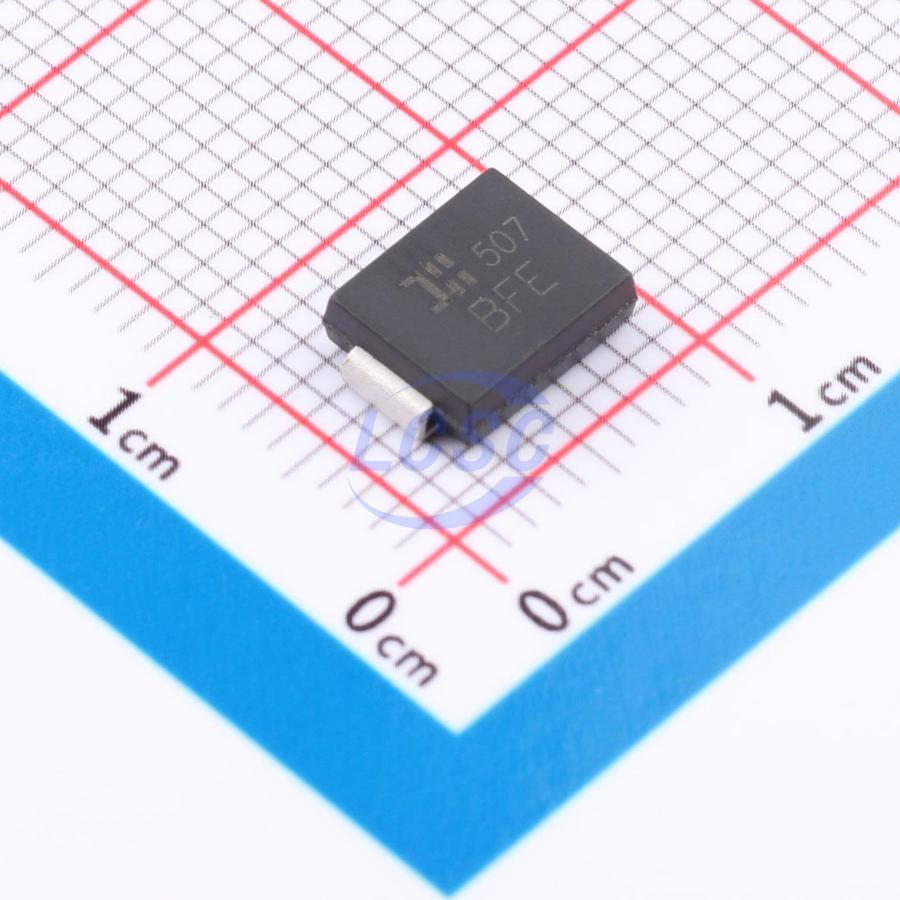

SMCJ26CAQ-13-F
42.1V 35.6A 1.5kW 31.9V Unidirectional 26V SMC TVS Diodes RoHS
TVS DIODE 26VWM 42.1VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ26CAQ-13-F
- Store part #
- C6228981
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
458 in stock
#C6228981
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.19 | ₹76.19 |
| 10+ | ₹62.05 | ₹620.50 |
| 30+ | ₹55.08 | ₹1,652.40 |
| 100+ | ₹48.12 | ₹4,812.00 |
| 500+ | ₹43.98 | ₹21,990.00 |
| 1,000+ | ₹41.81 | ₹41,810.00 |
1 × ₹76.19
₹76.19
excl. GST
₹89.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ26CAQ-13-F
₹76.19 for 1 + GST
Specifications
- Clamping Voltage
- 42.1V
- Peak Pulse Current (Ipp)
- 35.6A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.373 g
Overview
Designed to protect sensitive electronic circuits from powerline transients generated by inductive switching, these devices target a wide range of automotive applications including pumps, HVAC, infotainment, navigation and ADAS. Featuring a choice of reverse stand-off voltage from 14V to 36V these new automotive-compliant TVS are offered as unidirectional or bidirectional devices and are able to dissipate up to 400W (SMA), 600W (SMB) and 3000W (SMC) per 10/1000µs pulse transient.
Applications
- Advanced Driver Assistance Systems (ADAS)
- Infotainment
- Navigation
- HVAC (Heating, Ventilation & Air Conditioning)
- Body Control Modules
Key features
- AEC-Q101 Qualified and PPAP Supported: These devices are qualified to high reliability qualification standards in accordance with AEC-Q101 and supported by a production part approval procedure (PPAP).
- ISO 10605 Compliance: These parts are suitable to protect sensitive automotive circuits against electrostatic discharges according to ISO10605.
- ISO 7637-2 Compliance: These parts are suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 (pulses 1,2a, 2b and 3).
- High Forward Surge Current Capability and Excellent Clamping Capability: The high forward surge overload rating and excellent clamping capability ensures more rugged applications and improves device reliability.
