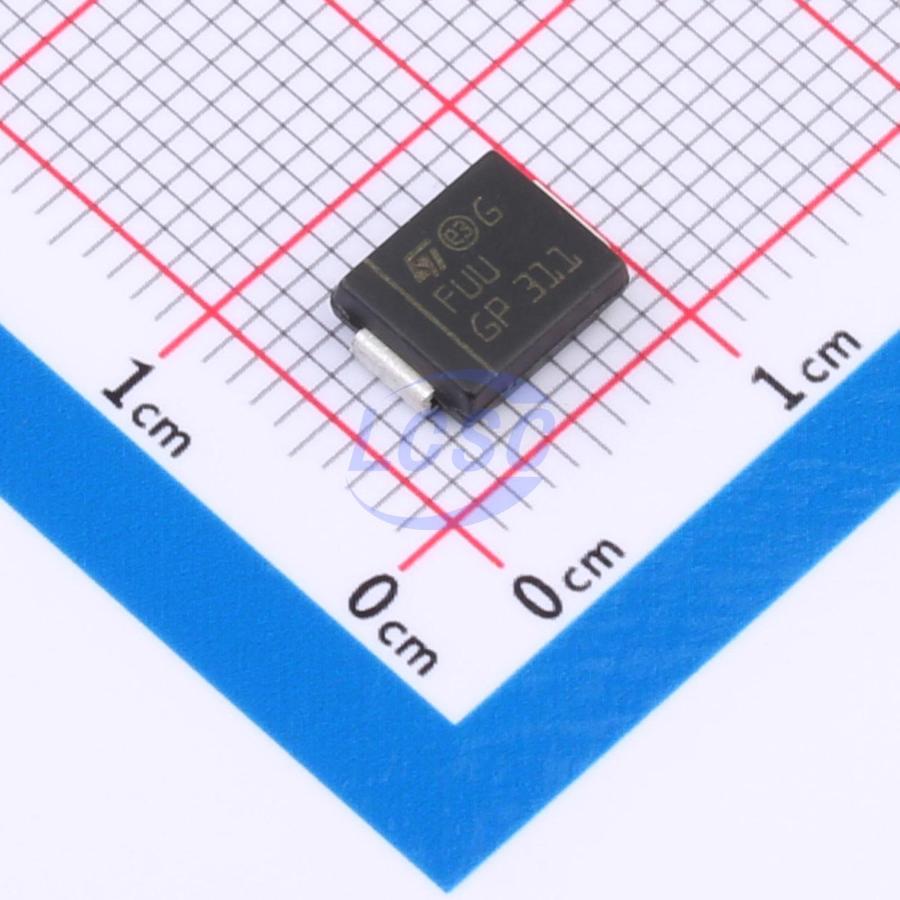

SMCJ40A-TR
84VC Clamp 24A@8/20us Ipp TVS DIODE SMC
TVS DIODE 40VWM 84VC SMC
- Manufacturer
- ST
- Manufacturer part #
- SMCJ40A-TR
- Store part #
- C1974336
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1974336
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.72 | ₹35.72 |
| 10+ | ₹34.85 | ₹348.50 |
| 30+ | ₹34.20 | ₹1,026.00 |
| 100+ | ₹33.54 | ₹3,354.00 |
1 × ₹35.72
₹35.72
excl. GST
₹42.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMCJ40A-TR
₹35.72 for 1 + GST
Specifications
- Clamping Voltage
- 84V
- Peak Pulse Current (Ipp)
- 24A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 46.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
The TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 1500 W 10/1000 µs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Key features
- Peak pulse power: 1500 W (10/1000 µs) up to 10 kW (8/20 µs)
- Stand-off voltage range from 5 V to 188 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 µA at 25 °C
- Operating Tj max: 150 °C
- High power capability at Tj max.: up to 1250 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
- JESD-201 class 2 whisker test
- IPC7531 footprint and JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM15T47AY#C3714113ST · SMC | ST | SMC | 20 | ₹288.10 · 20 in stock | View |
 | SMCJ40A#C1973227BOURNS · SMC(DO-214AB) | BOURNS | SMC(DO-214AB) | 36 | ₹101.67 · 36 in stock | View |
 | SMCJ43A#C5861039JUXING · SMC | JUXING | SMC | 3,000 | ₹15.47 · 3,000 in stock | View |
 | SMCJ43A#C2990098Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 65 | ₹18.43 · 65 in stock | View |
 | SMCJ43A/TR13#C310052Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 3,095 | ₹19.42 · 3,095 in stock | View |
