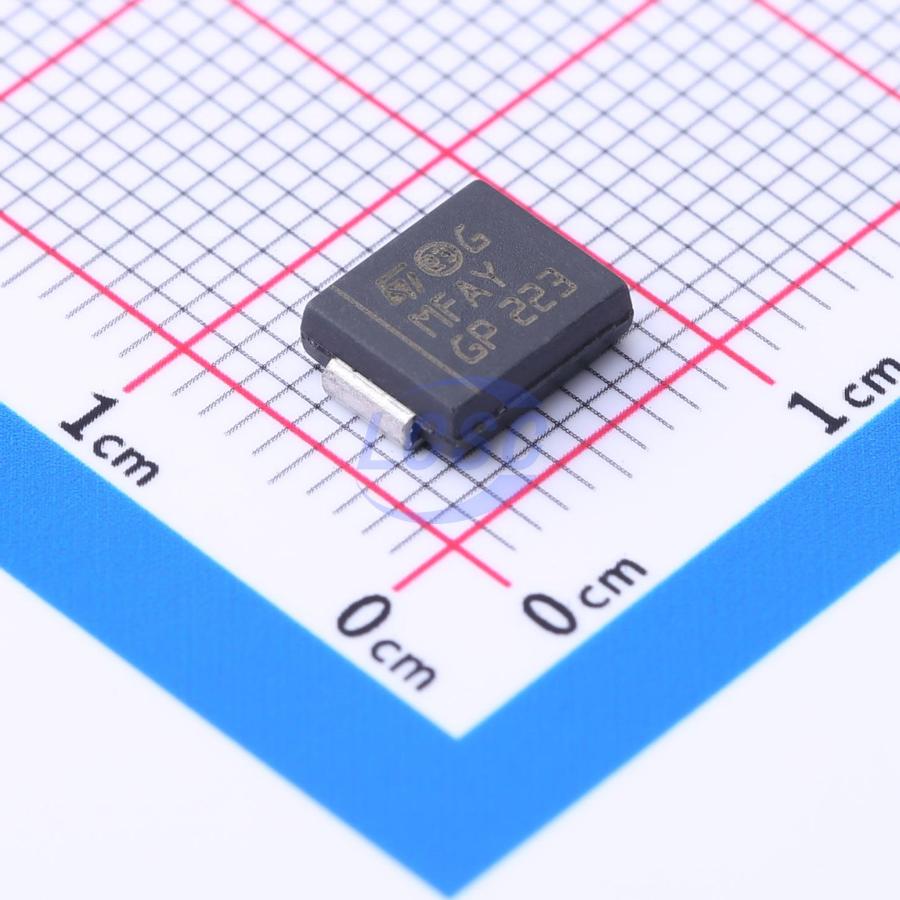

SM15T47AY
84VC Clamp 119A@8/20us Ipp TVS DIODE SMC
TVS DIODE 40.2VWM 84VC SMC
- Manufacturer
- ST
- Manufacturer part #
- SM15T47AY
- Store part #
- C3714113
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3714113
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹288.10 | ₹288.10 |
| 10+ | ₹241.51 | ₹2,415.10 |
| 30+ | ₹212.54 | ₹6,376.20 |
| 100+ | ₹182.69 | ₹18,269.00 |
| 500+ | ₹169.38 | ₹84,690.00 |
| 1,000+ | ₹163.59 | ₹1,63,590.00 |
1 × ₹288.10
₹288.10
excl. GST
₹339.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM15T47AY
₹288.10 for 1 + GST
Specifications
- Clamping Voltage
- 84V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 119A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 44.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The SM15TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637 - 2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high - end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Applications
- Protects sensitive automotive circuits against surges and ESD
Key features
- AEC - Q101 qualified
- Peak pulse power: 1500 W (10/1000 μs) and 10 kW (8/20 μs)
- Stand - off voltage range from 5.8 V to 70 V
- Unidirectional and bidirectional types
- Low leakage current: 0.2 μA at 25 ℃ and 1 μA at 85 ℃
- Operating Tj max: 150 ℃
- High power capability at Tj max.: up to 1250 W (10/1000 μs)
- Lead finishing: matte tin plating
