DIODESDatasheet (PDF)

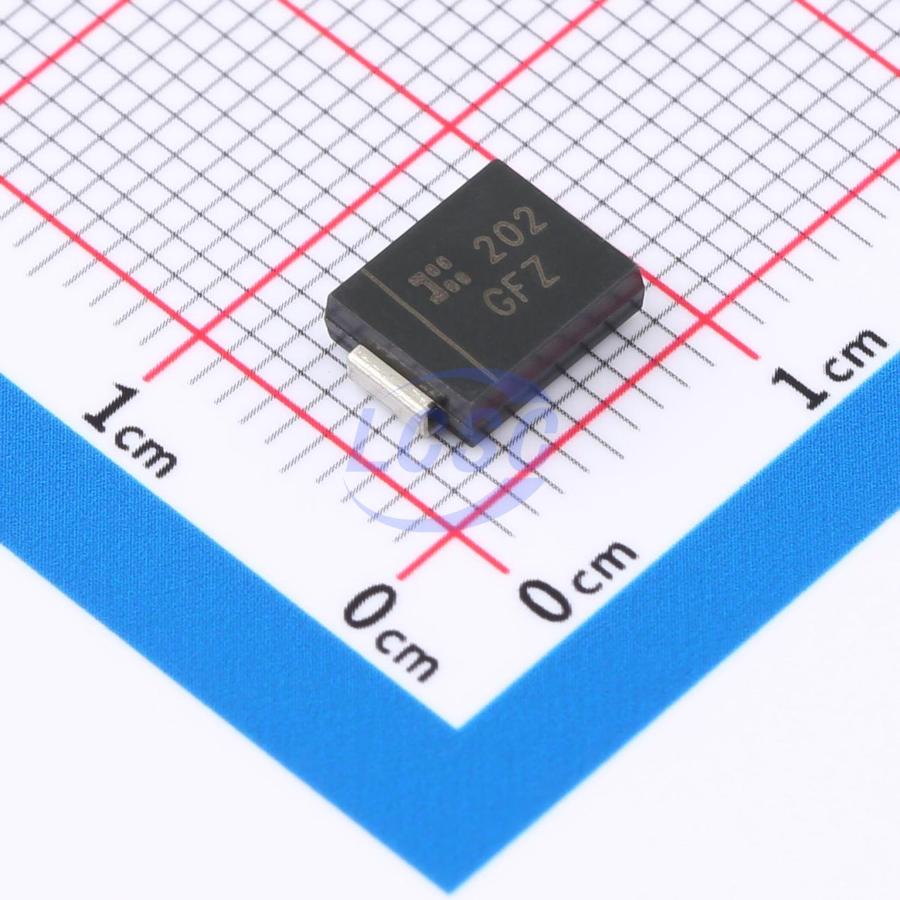

SMCJ51A-13-F
82.4VC Clamp 18.2A Ipp TVS DIODE SMC
SMCROHS CompliantActive
TVS DIODE 51VWM 82.4VC SMC
- Manufacturer
- DIODES
- Manufacturer part #
- SMCJ51A-13-F
- Store part #
- C135176
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C135176
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.96 | ₹105.96 |
| 10+ | ₹86.34 | ₹863.40 |
| 30+ | ₹76.63 | ₹2,298.90 |
| 100+ | ₹66.92 | ₹6,692.00 |
1 × ₹105.96
₹105.96
excl. GST
₹125.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ51A-13-F
₹105.96 for 1 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 18.2A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 62.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Key features
- 1500W peak pulse power dissipation
- 5.0V to 200V breakdown voltage
- Glass passivated die construction
- Unidirectional and bidirectional versions available
- Excellent clamping capability
- Fast response time
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ51A#C53260915TECH PUBLIC · SMC | TECH PUBLIC | SMC | 4,395 | ₹13.40 · 4,395 in stock | View |
 | SMCJ51A#C4154625TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 3,010 | ₹14.38 · 3,010 in stock | View |
 | SMCJ51A#C5161479ZHIDE · DO-214AB(SMC) | ZHIDE | DO-214AB(SMC) | 230 | ₹20.81 · 230 in stock | View |
 | SMCJ51A#C3721013SMC · SMC(DO-214AB) | SMC | SMC(DO-214AB) | 5 | ₹42.83 · 5 in stock | View |
 | SMCJ51CAQ-13-F#C7012044DIODES · SMC | DIODES | SMC | 76 | ₹182.06 · 76 in stock | View |
