TIDatasheet (PDF)

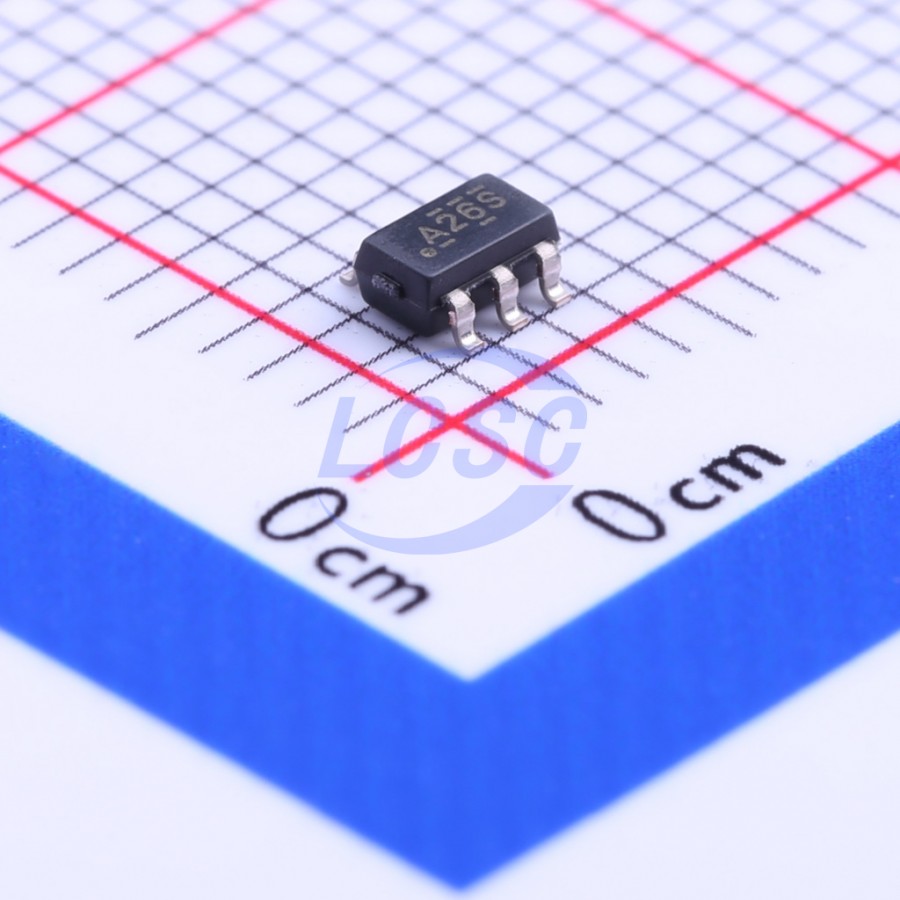

SN74AHC1G126DBVR
2V~5.5V 1 1 5.5ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G126DBVR
- Store part #
- C145145
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,890 in stock
#C145145
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.78 | ₹78.90 |
| 50+ | ₹12.54 | ₹627.00 |
| 150+ | ₹10.93 | ₹1,639.50 |
| 500+ | ₹9.71 | ₹4,855.00 |
| 3,000+ | ₹8.08 | ₹24,240.00 |
| 6,000+ | ₹7.59 | ₹45,540.00 |
5 × ₹15.78
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G126DBVR
₹78.90 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHC1G126 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is low. When OE is high, true data is passed from the A input to the Y output.
Applications
- Projectors
- TVs
- Servers
- Motor Controls
- Patient Monitoring Electronic Points of Sale
Key features
- Operating Range of 2 V to 5.5 V
- Max tpd of 6 ns at 5 V
- Low Power Consumption, 10 μA Max ICC
- ±8-mA Output Drive at 5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G125DBVR#C7468TI · SOT-23-5 | TI | SOT-23-5 | 48,400 | ₹9.54 · 48,400 in stock | View |
 | 74AHC1G126QW5-7#C3754069DIODES · SOT-25 | DIODES | SOT-25 | 25 | ₹9.47 · 25 in stock | View |
 | SN74AHC1G125DB(LX)#C45384870lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,890 | ₹7.28 · 2,890 in stock | View |
 | 74AHC1G125W5-7#C460489DIODES · SOT-25 | DIODES | SOT-25 | 1,690 | ₹12.12 · 1,690 in stock | View |
| AiP74AHC1G125GB235.TR#C52121065Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 1,160 | ₹9.38 · 1,160 in stock | View | |
