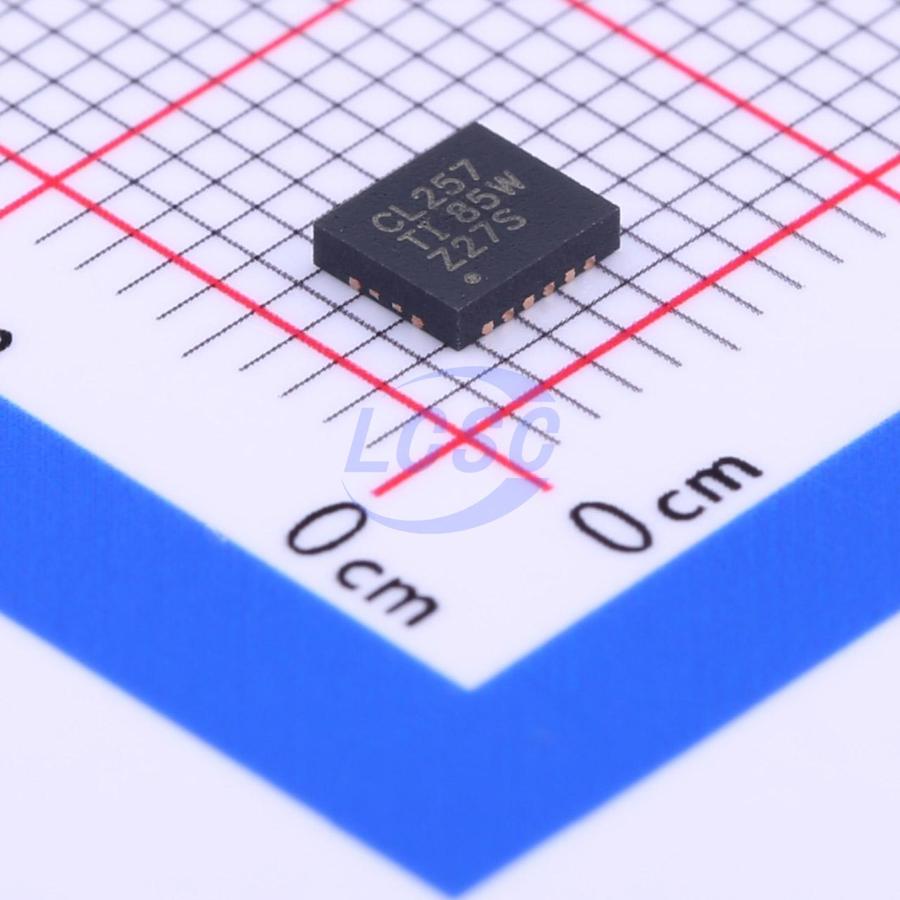

SN74CBTLV3257RGYR

2.3V~3.6V 5Ω 4 250ps Power-off isolation VQFN-16-EP(3.5x4) Signal Switches, Multiplexers, Decoders RoHS

VQFN-16-EP(3.5x4)ROHS3 CompliantActive

SN74CBTLV3257 Low-Voltage 4-Bit 1-of-2 FET Multiplexer/Demultiplexer

Manufacturer: TI
Manufacturer part #: SN74CBTLV3257RGYR
Store part #: C273635
Package / case: VQFN-16-EP(3.5x4)
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,860 in stock

#C273635

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹66.41	₹66.41
10+	₹56.44	₹564.40
30+	₹52.75	₹1,582.50
100+	₹49.06	₹4,906.00
500+	₹46.66	₹23,330.00
1,000+	₹45.58	₹45,580.00

Quantity (min 1)

1 × ₹66.41

₹66.41

excl. GST

₹78.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74CBTLV3257RGYR

₹66.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 2.3V~3.6V
Ron: 5Ω
Number of Channels: 4
Operating Temperature: -40℃~+85℃
Propagation Delay: 250ps
Function: Power-off isolation

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.148 g

Overview

The SN74CBTLV3257 device is a 4-bit 1-of-2 highspeed FET multiplexer/demultiplexer. The low onstate resistance of the switch allows connections to be made with minimal propagation delay.

Applications

Internet of Things
Wireless Headphones
Television Set
4-Bit Bus Multiplexing and Demultiplexing

Key features

5-Ω Switch Connection Between Two Ports
Rail-to-Rail Switching on Data I/O Ports
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A)
