TIDatasheet (PDF)

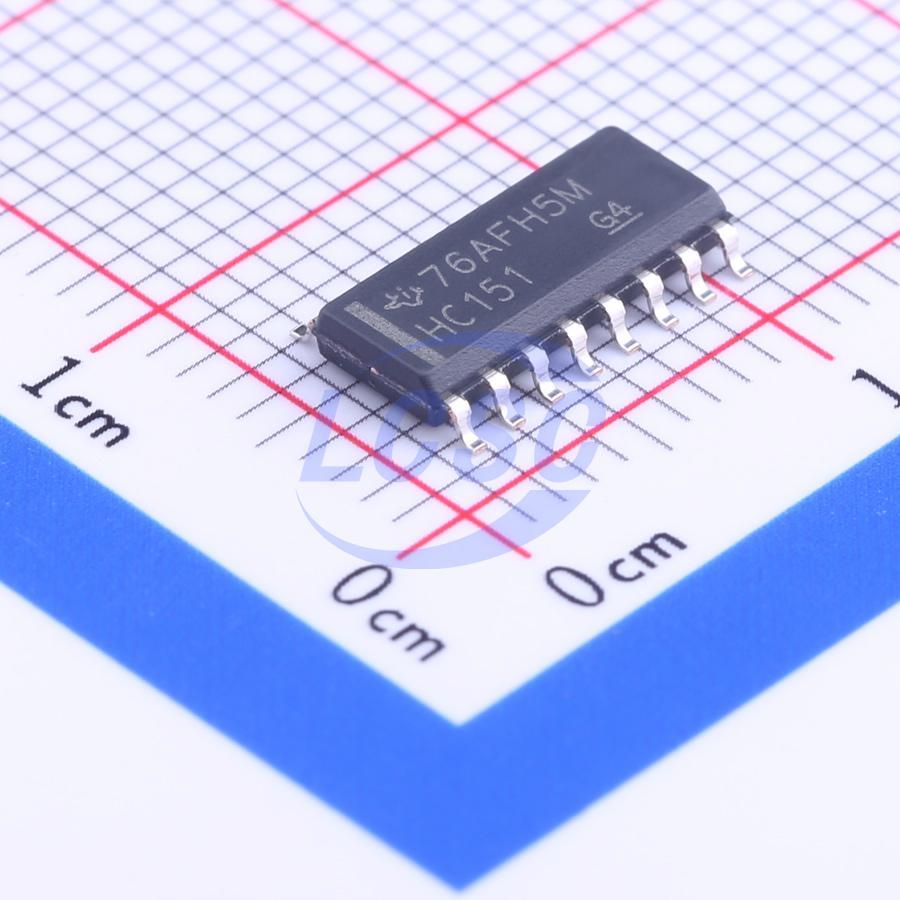

SN74HC151DR
8/1 2V~6V 80uA 54ns@6V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
8-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC151DR
- Store part #
- C6822
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,772 in stock
#C6822
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.94 | ₹56.94 |
| 10+ | ₹44.77 | ₹447.70 |
| 30+ | ₹39.56 | ₹1,186.80 |
| 100+ | ₹33.04 | ₹3,304.00 |
| 500+ | ₹30.22 | ₹15,110.00 |
| 1,000+ | ₹24.13 | ₹24,130.00 |
1 × ₹56.94
₹56.94
excl. GST
₹67.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC151DR
₹56.94 for 1 + GST
Specifications
- Series
- 74HC
- Number of Channels
- 8/1
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 7.8mA
- Propagation Delay
- 54ns@6V,50pF
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
These data selectors/multiplexers provide full binary decoding to select one of eight data sources. The strobe (G(overline)) input must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the W output high and the Y output low.
Applications
- Boolean function generator
- Parallel-to-serial converter
- Data source selector
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 80 μA Max ICC
- Typical tpd = 13 ns
- ±6 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- 8-Line to 1-Line Multiplexers Can Perform as:
- Boolean-Function Generators
- Parallel-to-Serial Converters
- Data Source Selectors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HC151DRG#C42396738HANSCHIP semiconductor · SOP-16 | HANSCHIP semiconductor | SOP-16 | 4,880 | ₹20.03 · 4,880 in stock | View | |
 | SN74HC251DR#C178335TI · SOIC-16 | TI | SOIC-16 | 2,145 | ₹60.66 · 2,145 in stock | View |
| SN74HC151QDRQ1#C2674444TI · SOIC-16 | TI | SOIC-16 | 995 | ₹91.56 · 995 in stock | View | |
 | SN74HCS251QDRQ1#C2873623TI · SOIC-16 | TI | SOIC-16 | 207 | ₹61.97 · 207 in stock | View |
| TC74HC151AF(EL,F)#C23067472TOSHIBA · SOP-16 | TOSHIBA | SOP-16 | 1,992 | ₹97.00 · 1,992 in stock | View | |
