TIDatasheet (PDF)

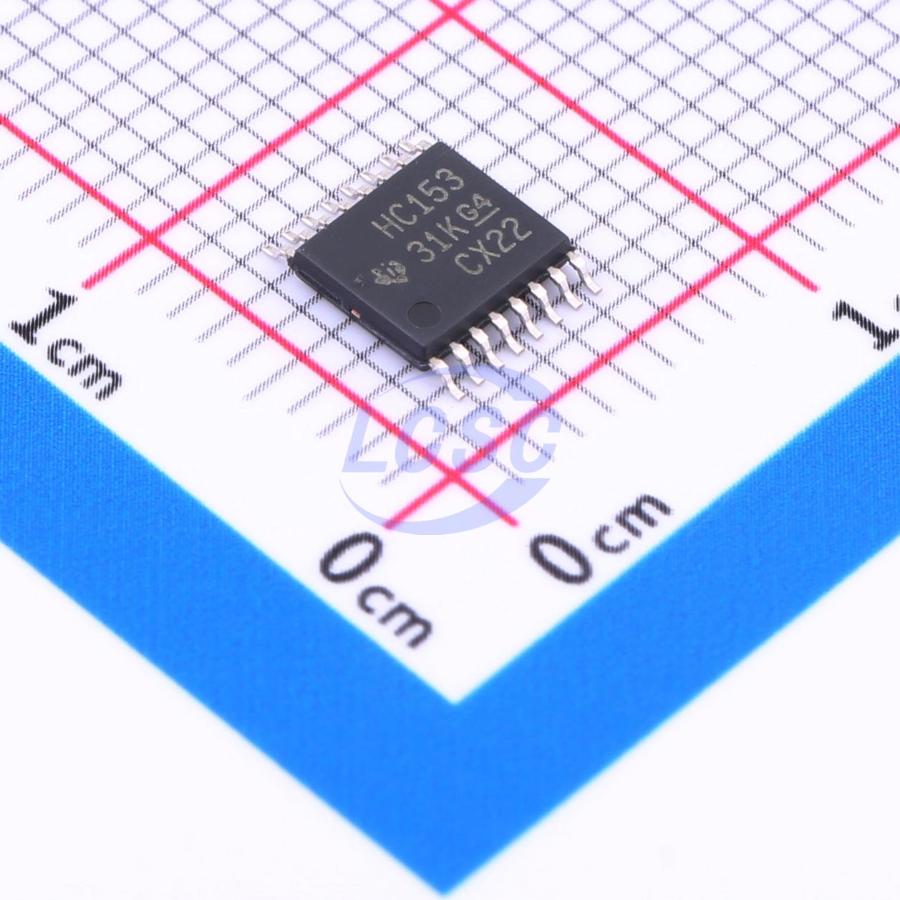

SN74HC153PWR
8/2 2V~6V 80uA 26ns@6V,50pF TSSOP-16 Signal Switches, Multiplexers, Decoders RoHS
TSSOP-16ROHS3 CompliantActive
SNx4HC153 Dual 4-Line to 1-Line Data Selector/Multiplexer
- Manufacturer
- TI
- Manufacturer part #
- SN74HC153PWR
- Store part #
- C2865561
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,965 in stock
#C2865561
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.45 | ₹58.45 |
| 10+ | ₹45.84 | ₹458.40 |
| 30+ | ₹39.77 | ₹1,193.10 |
| 100+ | ₹34.33 | ₹3,433.00 |
| 500+ | ₹32.81 | ₹16,405.00 |
| 1,000+ | ₹31.94 | ₹31,940.00 |
1 × ₹58.45
₹58.45
excl. GST
₹68.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC153PWR
₹58.45 for 1 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/2
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 7.8mA
- Propagation Delay
- 26ns@6V,50pF
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
The SNx4HC153 is a dual-channel data selector/multiplexer with full binary decoding, capable of selecting one of four data sources. Both channels are controlled by the same address select inputs, and each channel has its own strobe (G̅) input. Driving the strobe terminal high forces the corresponding output low.
Key features
- Wide operating voltage range: 2V to 6V
- Output drives up to 15 LSTTL loads
- Low power consumption, ICC max = 80 μA
- tpd typical = 9ns
- Output drive ±6mA at 5V
- Low output current, max 1µA
- Multiplexing from n lines to one line
- Parallel-to-serial conversion
- Strobe (enable) line for cascading (N lines to n lines)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCS153PWR#C2873367TI · TSSOP-16 | TI | TSSOP-16 | 1,055 | ₹62.42 · 1,055 in stock | View |
 | 74VHC153FT(BJ)#C150159TOSHIBA · TSSOP-16 | TOSHIBA | TSSOP-16 | 1,750 | ₹36.91 · 1,750 in stock | View |
 | 74HC153PW,118#C546601Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | 1,900 | ₹39.99 · 1,900 in stock | View |
 | MC74HC151ADTR2G#C152523onsemi · TSSOP-16 | onsemi | TSSOP-16 | 5 | ₹66.93 · 5 in stock | View |
 | MC74HC251ADTR2G#C603264onsemi · TSSOP-16 | onsemi | TSSOP-16 | 160 | ₹45.41 · 160 in stock | View |
