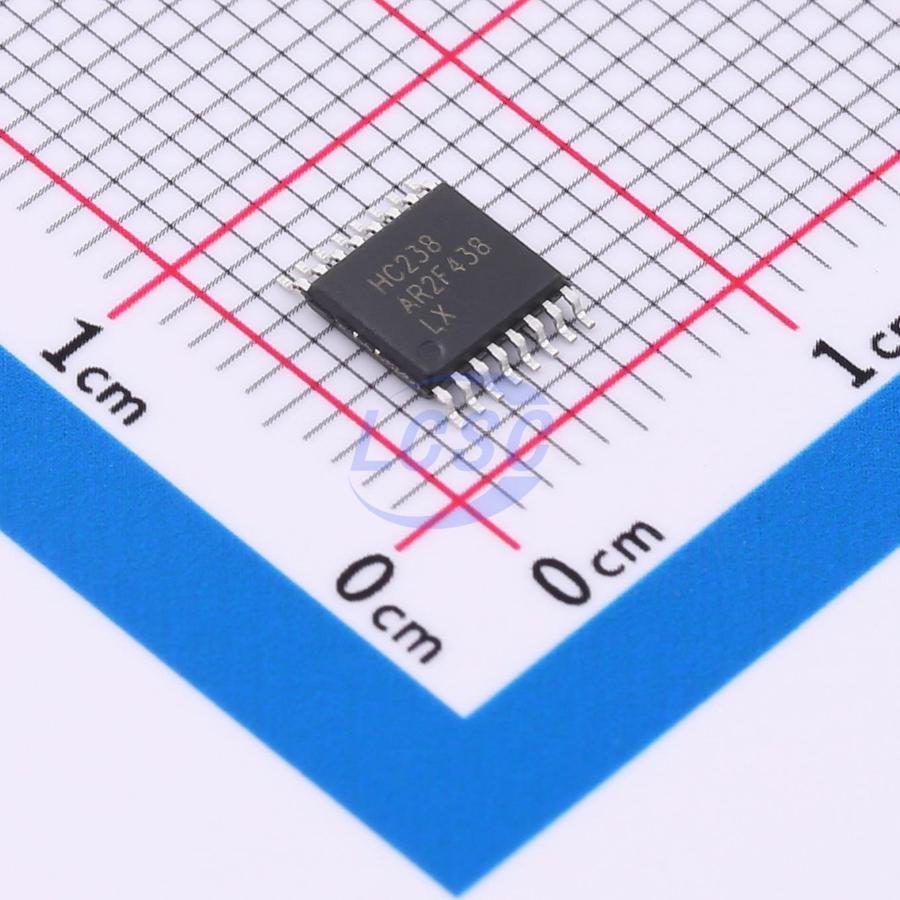

SN74HC238PWR(LX)
3/8 2V~6V 8uA 30ns@4.5V,50pF TSSOP-16 Signal Switches, Multiplexers, Decoders
TSSOP-16RoHSActive
3-to-8 Line Decoder/Demultiplexer
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC238PWR(LX)
- Store part #
- C41430940
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,795 in stock
#C41430940
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.01 | ₹140.05 |
| 50+ | ₹21.99 | ₹1,099.50 |
| 150+ | ₹19.41 | ₹2,911.50 |
| 500+ | ₹16.19 | ₹8,095.00 |
| 2,500+ | ₹14.76 | ₹36,900.00 |
| 5,000+ | ₹13.90 | ₹69,500.00 |
5 × ₹28.01
₹140.05
excl. GST
₹165.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74HC238PWR(LX)
₹140.05 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74HC
- Number of Channels
- 3/8
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 8uA
- Current - Output High(IOH)
- 20uA
- Propagation Delay
- 30ns@4.5V,50pF
- Current - Output Low(IOL)
- 20uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
The SN74HC/HCT238 decodes three binary weighted address inputs (A0, A1 and A2) to eight mutually exclusive outputs (Y0 to Y7). The device features three enable inputs (E1 and E2 and E3). Every output will be LOW unless E1 and E2 are LOW and E3 is HIGH. This multiple enable function allows easy parallel expansion to a 1-of-32 (5 to 32 lines) decoder with just four SN74HC/HCT238 ICs and one inverter. The SN74HC/HCT238 can be used as an eight output demultiplexer by using one of the active LOW enable inputs as the data input and the remaining enable inputs as strobes. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For SN74HC238: CMOS level For SN74HCT238: TTL level
- Demultiplexing capability
- Multiple input enable for easy expansion
- Ideal for memory chip select decoding
- Active HIGH mutually exclusive outputs
- Specified from -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
