lingxingic

SN74HC4052PWR(LX)

2/8 3V~9V 160uA 15ns@4.5V,50pF TSSOP-16 Signal Switches, Multiplexers, Decoders

TSSOP-16RoHSActive

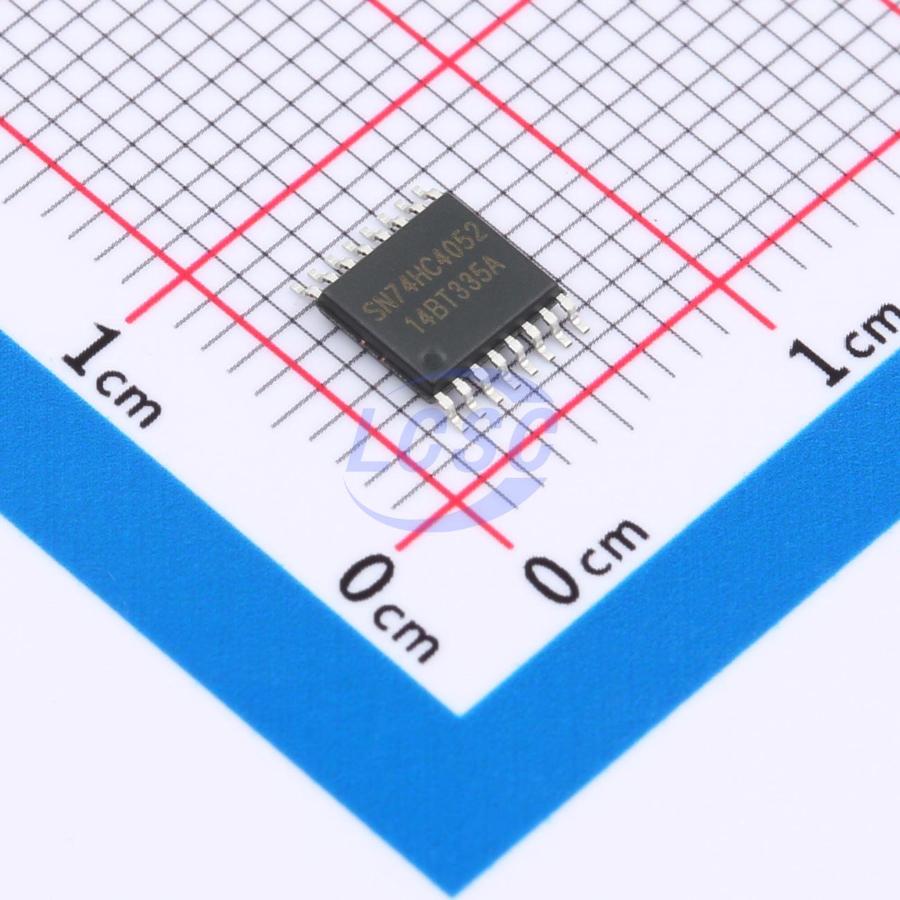

Dual 4-channel Analog Multiplexer/Demultiplexer

Manufacturer: lingxingic
Manufacturer part #: SN74HC4052PWR(LX)
Store part #: C22449643
Package / case: TSSOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,845 in stock

#C22449643

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹19.09	₹95.45
50+	₹15.49	₹774.50
150+	₹13.69	₹2,053.50
500+	₹12.34	₹6,170.00
2,500+	₹10.52	₹26,300.00
5,000+	₹9.98	₹49,900.00

Quantity (min 5, multiples of 5)

5 × ₹19.09

₹95.45

excl. GST

₹112.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74HC4052PWR(LX)

₹95.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Number of Channels: 2/8
Voltage - Supply: 3V~9V
Operating Temperature: -40℃~+105℃
Quiescent Current: 160uA
Propagation Delay: 15ns@4.5V,50pF
Function: Level shifting;Break-before-make function

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

The SN74HC/HCT4052 is a dual single-pole quad-throw analog switch (2×SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E(overline) is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range from -5 V to +5 V
Low ON resistance:
-80 Ω (typical) at VCC - VEE = 4.5 V
-70 Ω (typical) at ΔVCC - VEE = 6.0 V
-60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical “break before make” built-in
Input levels:
For 74HC4052: CMOS level
For 74HCT4052: TTL level
Specified from -40 °C to +105 °C
Packaging information: DIP16/SOP16/SSOP16/TSSOP16
