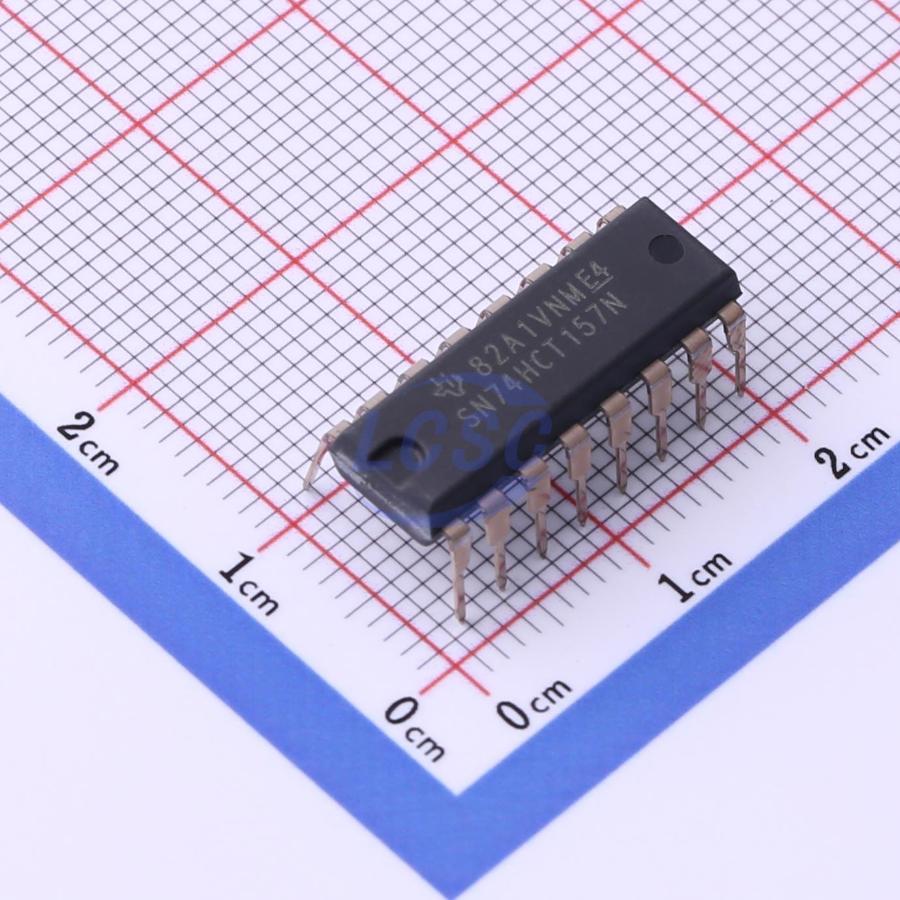

SN74HCT157N
8/4 4.5V~5.5V 80uA 25ns@5.5V,50pF PDIP-16 Signal Switches, Multiplexers, Decoders RoHS
PDIP-16ROHS CompliantActive
QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT157N
- Store part #
- C1547094
- Package / case
- PDIP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
989 in stock
#C1547094
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.84 | ₹108.84 |
| 10+ | ₹94.16 | ₹941.60 |
| 25+ | ₹83.80 | ₹2,095.00 |
| 100+ | ₹75.16 | ₹7,516.00 |
| 500+ | ₹72.57 | ₹36,285.00 |
| 1,000+ | ₹70.83 | ₹70,830.00 |
1 × ₹108.84
₹108.84
excl. GST
₹128.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HCT157N
₹108.84 for 1 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HCT
- Number of Channels
- 8/4
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 6mA
- Propagation Delay
- 25ns@5.5V,50pF
- Current - Output Low(IOL)
- 6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.76 g
Overview
These data selectors/multiplexers contain inverters and drivers to provide full data selection to four output gates. A separate strobe G input is provided. A 4-bit word is selected from one of two sources and routed to the four outputs.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- High-Current Outputs Drive Up To 15 LSTTL Loads
- Typical propagation delay time (tpd) = 15 ns
- Low Power Consumption, 80 μA Max ICC
- ±6 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL - Voltage Compatible
- Buffered Inputs and Outputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN54LS157J#C5216661TI · CDIP-16 | TI | CDIP-16 | 3 | ₹2,976.63 · 3 in stock | View | |
 | SN74LS257BN#C1547275TI · PDIP-16 | TI | PDIP-16 | 100 | ₹285.98 · 100 in stock | View |
 | XD74LS157#C707101XINLUDA · DIP-16 | XINLUDA | DIP-16 | 106 | ₹60.20 · 106 in stock | View |
